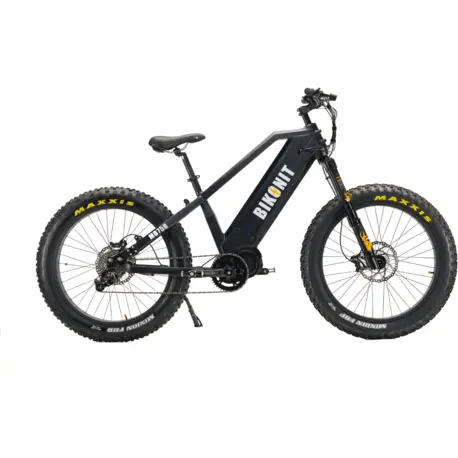

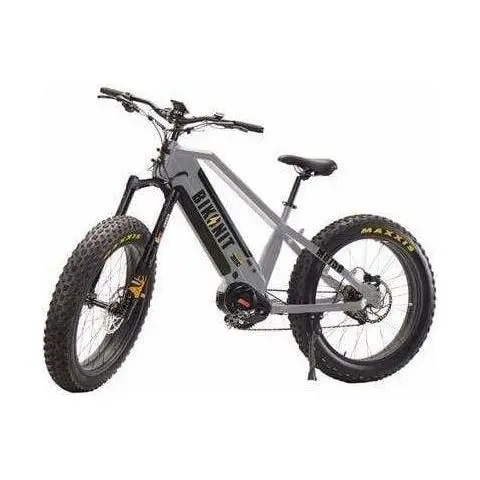

Bikonit Warthog MD750 All-Terrain E-Bike – 750W Motor, 48V 15Ah Battery

Description

Bikonit MD-750 Highlights

• Bafang G510 750W Ultra Mid Motor
• 1500W Peak Output
• 160NM Torque, 500 lbs Towling
• Max Speed 20 MPH (32 KPH)

• Tektro HD-725 4 Piston Hydraulic Brakes
• 203 mm Disc Rotors
• Power Cutoff Function
• On Both Front & Rear Wheels

• Dual Battery Design Al Frame
• LG Chem 21700 Cells
• Capacity 48V 15 Ah (Single Battery)
• Max Capacity: 30 Ah (Dual Battery)
• Max rang reaches 100M+ (Dual Battery)

• KMC Professional Ebike Chain

• 3 Ride Modes:
• Pedal Like a Normal Bike
• Ride with Pedal Assist
• Ride with Thumb Throttle Like a Scooter

• Kenda Juggernaut 26*4.5”
•  All-terrain

• Bafang Color LCD
• Backlight Function
• Auto-adjustable Brightness
• Intergraded USB Charging Port

• Sram X-5 9 speeds
• DNP 13T-34T with KMC Chain

• Bikonit Customized Air Suspension
• 120 mm Travel
• Lock-out

Click here for –>> MD-750 Geometry & Sizing

Video

Specification

Bike Weight:

70 lbs (31.68kg) without battery

Battery Weight:

8.62lbs(3.91kg)/pc

Frame:

6061 Aluminum Alloy

Fork:

Bikonit Customized Air Suspension 120mm Travel,Lock-out

Rear Sprocket&Derailleur:

DNP 13T-34T/Sram X-5

Chain Sproket:

Bafang 44T with 170mm Crank

Chain:

KMC Ebike Profession

Front Hub:

15mm Quick Release, 150mm Hub Spacing

Gear Shifter:

Sram X-5 9 speeds Trigger shifter right hand

Rear Hub:

197mm Hub Spacing Bearing, Quick release.

Brake System:

Tektro HD-E725 4 Piston Hydraulic 203mm Rotor. Power Cut off Function

Tire:

Maxxis Minion FBF, 26″ x 4.8″ , All Terrain

Rim:

Aluminum Alloy, Double Wall, 100mm Width, 36 Hole

Pedal:

CITYWAY CNC

Saddle:

SR Saddle

Handle Bar:

Promax Aluminum Alloy, Promax 740mm Length, Low Rise

Stem:

Aluminum 31.8*60mm fixed

Grips:

Velo Grips Lock on

Standover Height:

29”

Weight Capacity:

300lbs

Charger:

 48V 5A 110V~240V quick Charger

Battery:

LG 48V 15AH standard/(Max 30Ah dual battery version)

Controller:

 Bangfang Ultra Intergraded

Display:

Bikonit color LCD, Backlight, Auto-adjustable Brightness, USD Port

Motor:

 Bafang G510 Ultra Max Mid Motor 750W

Ride Modes:

 Pedal/Pedal Assit/Throttle.

Throttle Version:

 Half Grip Twist Throttle on Right Hand

Range:

 *28～35M+(Pedal Assist)

Wiring:  Water resistant connectors ‍with quick plugs

* Range Depends on Terrain/Rider/Enviroment etc.
