Superior Mowing Experience with Unmatched Performance
The Dixie Chopper BlackHawk HP provides the superior mowing experience with advanced operator controls, commercial grade components, and unmatched performance and comfort.

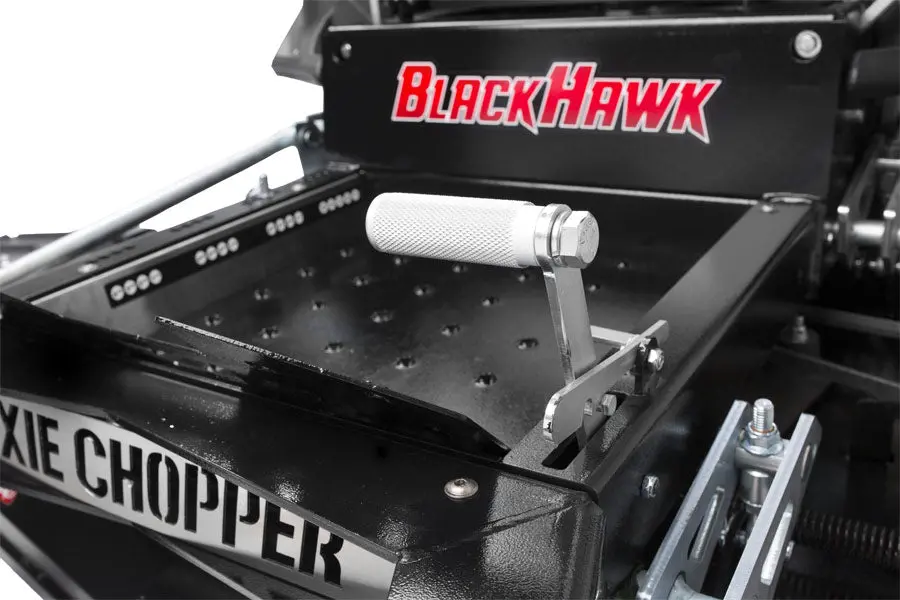

- OCDC – Foot-operated to keep your hands on the steering levers.
- Suspension Seat – Full suspension for ultimate comfort all day long.
- Parker HTJ – Speeds up to 10 mph with smooth steering and 1,000 hour oil change intervals.
- Peer Spindles – Maintenance free with Contamination Exclusion Technology.
- 54″ and 60″ Decks – Deep 7 gauge shell with bulletproof steel baffles for superior strength.
- Proven Power – Equipped with the industry preferred Kawasaki® FX and FT EFI engines for trusted reliability and performance.
Dixie Chopper Accessory Compatibility Chart |
|
Dixie Chopper BlackHawk HP Accessories |
|
| Striping Kit | 902985 |
| Mulch Kit 60″ | 670869 |
| Twist Blade 60″ | 30227-60T |
| “N” (3″ Wide) Blade 60″ | 30227-60N |
| Eliminator Blade 60″ | 30227-60E |
| Discharge Enhancement Kit 60″ | 670870 |
| PECO Pro 2B+ Bagger | 38120905 |
| Black Hard-Top Sunshade | 4421380 |
| White Hard-Top Sunshade | 4421381 |
| Electric Deck Lift | 4366006 |
| Springer Forks (set) | 4369086 |
| Run-Flat M/C Tire (Assembly) | 402065 |
| Run-Flat Rib Tire (Assembly) | 402091 |
| Light Kit | 4382367 |
| Hitch Kit | 4369190 |
| Deck Bumper Kit | 671082 |
| Parker HTE & HTJ Oil Change Kit | 903458 |
___________________________________________
Specifications:
Engine |
|
| Manufacturer | Kawasaki® FX |
| Horsepower | 23.5 |
| Displacement | 726cc |
| Air-cleaner | 4-stage |
| Cooling | Air-cooled |
| Starter | Electric |
| Engine warranty | 3-Year |
Drive System |
|
| Dual hydrostatic | Parker® HTJ |
| Ground speed | 10 mph |
| Parking brake | Integrated in transaxle |
| Towing capacity | 200 lbs |
Mower Deck |
|
| Deck Size | 60″ |
| Acres/hour | 4.8 |
| Cutting height | 1″-5″ |
| OCDC (operator controlled discharge chute) | Foot-operated (standard) |
| Deck height adjustments | Manual lift, 1/4″ increments |
| Electric Lift | Optional |
| Deck engagement | Ogura® 150 ft-lbs |
| Construction | 7 ga formed & welded, Abrasion Resistance Baffles |
| Blades | (3) – 2.5″ x 20.5″ |
| Blade Tip Speed | 18,500 fpm |
| Spindles | 1.25″ effective diameter machined shaft |
| Spindle Housings | Peer® Turf Xtreme™ ductile iron (sealed) |
| Anti-scalp rollers | 4 |
| Pulleys | 7 ga steel deep groove |
General |
|
| Battery | 12 Volt, 350cca |
| Digital display | Tachometer, hour meter, fuel gauge |
| Fuel capacity | 7 gallons |
| Rear tires | 23 x 10.5-12 GrassMaster |
| Front tires | 13 x 6.5-6 |
| Frame | Welded C-channel, 7 ga formed |
| Floor-pan | Removable, steel |
| Seat | Full suspension, adjustable seat w/ armrests |
| Springer Forks | Optional |
Dimensions |
|
| Overall height (rollbar down) | 50″ |
| Overall height (rollbar up) | 71″ |
| Overall width (chute down) | 76″ |
| Overall width (chute up) | 61.9″ |
| Overall length (rollbar down) | 85.8″ |
| Overall length (rollbar up) | 81.3″ |
| Weight | 1140 lbs |
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
