Chopper Features.
The Dixie Chopper Zee 2 HP 48″ redefines what to expect from a residential mower. Packed with upgraded features including a bigger engine, commercial-grade transmissions, Operator Controlled Discharge Chute (OCDC), and a super plush seat, the Zee 2 HP delivers incredible value to the customer.
- High Horsepower – A 24 horsepower engine from Kawasaki® for proven power to tackle through thick grass up to 3.1 acres per hour.
- Full Clipping Control – The OCDC comes standard to give you full control of your clippings. Keep grass out of the driveway, flower bed, and more.
- Superior Comfort – A super plush seat with ISO mounts give the operator extra comfort for extended mowing.

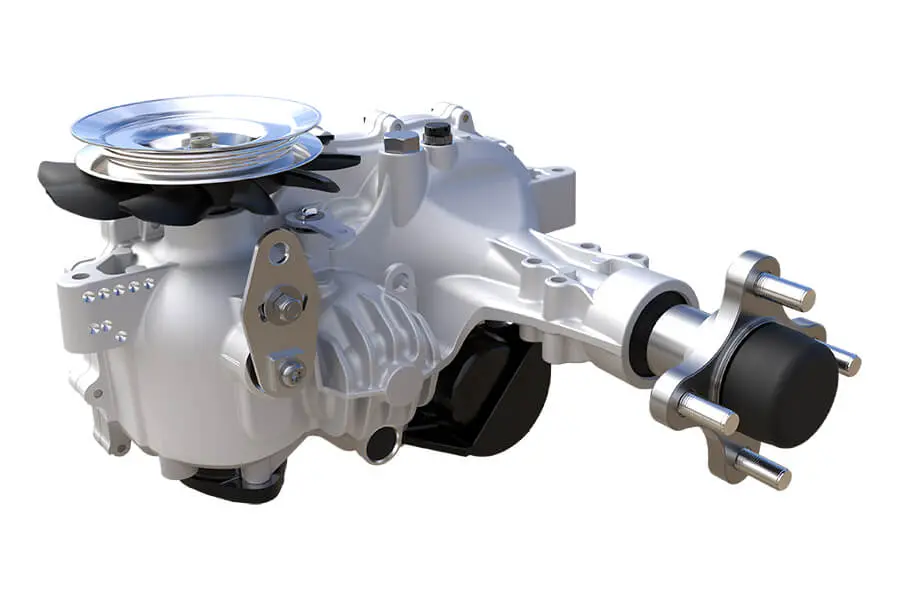

- Hydro-Gear® Drivetrain – ZT-3100 commercial-grade transaxles offer steel-cut gears, charge pumps, and shock valves for extended drivetrain performance.
- Large Drive Tires – Easily grip hillsides with large 22″ drive tires. Larger tires provides more speed, stability, and traction when you need it.
- Elite Cutting System – Offered in two cutting widths (48″and 54″), the Elite Deck easily cuts large volumes of grass and provides an attractive after-cut appearance.
- 3 Year Bumper-to-Bumper Warranty*: *unlimited hour limited residential warranty
Dixie Chopper Accessory Compatibility Chart |
|
Dixie Chopper Zee 2 HP Accessories |
|
| Striping Kit | 902773 |
| Mulch Kit 54″ | 903012 |
| High-Lift Blade 54″ | 301069 |
| Eliminator Blade 54″ | 301069E |
| Roll Over Protection Structure (ROPS) | 902676 |
| Bagger (Accelerator) | 903031 |
| White Soft-Top Sunshade (w/ out ROPS) | 902752 |
| Run-Flat M/C Tire (Assembly) | 402065 |
| Run-Flat Rib Tire (Assembly) | 402091 |
| Light Kit | 903416 |
___________________________________________
Specifications:
Engine |
|
| Manufacturer | Kawasaki FR |
| Horsepower | 24 hp |
| Displacement | 726cc |
| Air-cleaner | 2-stage |
| Cooling | Air-cooled |
| Starter | Electric |
| Engine warranty | 3-Year |
Drive System |
|
| Dual hydrostatic | Hydro-Gear® ZT-3100 transaxles (internal expansion tank) |
| Ground speed | 8 mph |
| Parking brake | Integrated in transaxle |
| Towing capacity | 100 lbs |
Mower Deck |
|
| Deck Size | 54″ |
| Acres/hour | 3.4 |
| Cutting height | 1.5″ – 4.5″ |
| Deck height adjustments | Manual lift, 1/2″ increments |
| Deck Quick-Lift | Integrated |
| Deck engagement | Ogura® 87 ft-lbs |
| Construction | 10 ga formed & welded |
| Blades | 3 – 19.25″ x 2.5″ |
| Blade Tip Speed | 18,500 fpm |
| Spindles | .75″ effective diameter machined shaft |
| Spindle Housings | 1pc keyless sealed cast aluminum |
| Anti-scalp rollers | 4 |
| Pulleys | Vented split 3/16″ steel deep groove |
General |
|
| Battery | 12 Volt, 300cca |
| Digital display | hour meter |
| Fuel capacity | 4 gallons |
| Rear tires | 22 x 11-10 |
| Front tires | 13 x 6.5-6 |
| Frame | Welded 1″ x 2″, 2″ x 2″ tube, 10 ga formed |
| Fenders | Stainless steel |
| Floor-pan | Removable, steel |
| Seat | 20″ padded seat w/ armrests, ISO 360 Mount |
Dimensions |
|
| Overall height | 47″ |
| Overall width (chute down) | 59″ |
| Overall width (chute up) | 63.25″ |
| Overall length | 76″ |
| Weight | 788 lbs |
If you have any questions about this Dixie Chopper 54-inch zero-turn mower give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
