Ecotric E-Bike Chargers – Model-Specific Options with Variable Pricing

Description

We carry Ecotric specified chargers for various models of Ecotric E-Bikes. Select the charger from the dropdown menu based on your Ecotric e-bike model. For specifications for each battery type, see below.

Note: These chargers are not for non-Ecotric E-Bikes

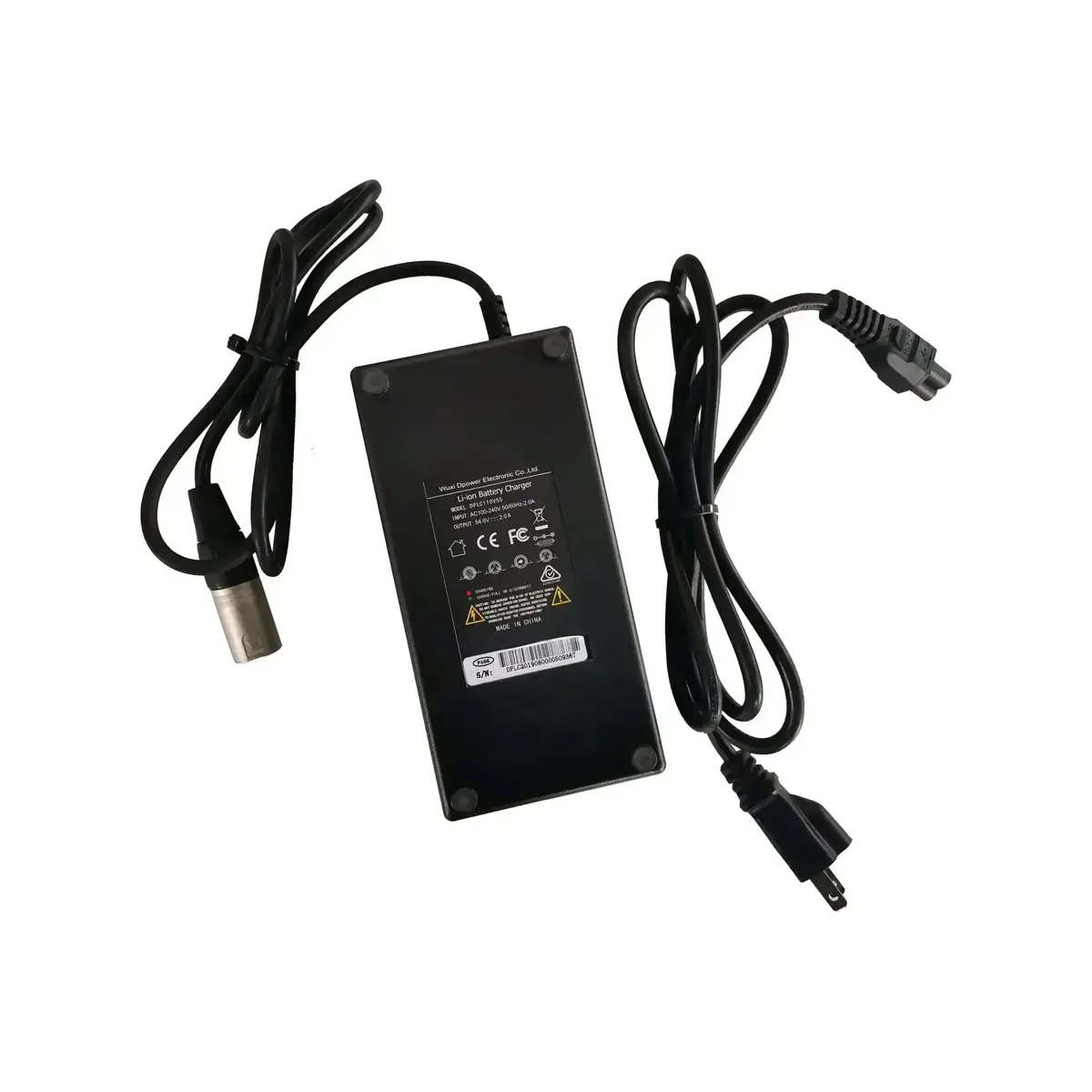

Charger for ECOTRIC Hammer E-Bike, SKU: SH-CDQ005-UL

This is an original lithium battery charger for Hammer, Fat 20 48V. The charger case is made of PS/ABS material, high-temperature resistance, fire retardant, safe and durable, and also helps heat dissipation.

FEATURES

• Compatibility£ºHammer, Fat 20 48V.
• Input Characteristics :
• Nominal Voltage: 100-240VAC Variation Voltage: 90-264VAC
• Nominal Frequency: 50-60Hz, Variation Frequency:47-63Hz
• Current: 2.0A

• Output Characteristics:
• Voltage:DC 54.6V Current: 2.0A

• Indication Light: red light when charging, green light when fully charged.
• Power Cord: 5-inch length.
• Charger plug: Common 3 pin XLR connector.
• Protection – Short Circuit Protection, Overcurrent Protection, Over Voltage Protection, Battery polarity error protection.

NOTE

• Please first connect the plug to the battery, and then connect the charger to an AC outlet.
• When the battery is charging, it is normal that the charger is getting hot.
• Specifically designed for lithium batteries, not for lead-acid batteries.
• Do not operate the charger if damaged.
• The charger is only suitable for 48V batteries and not for 36V batteries or lower.
• We send them to you by USPS, please write the right shipping address.

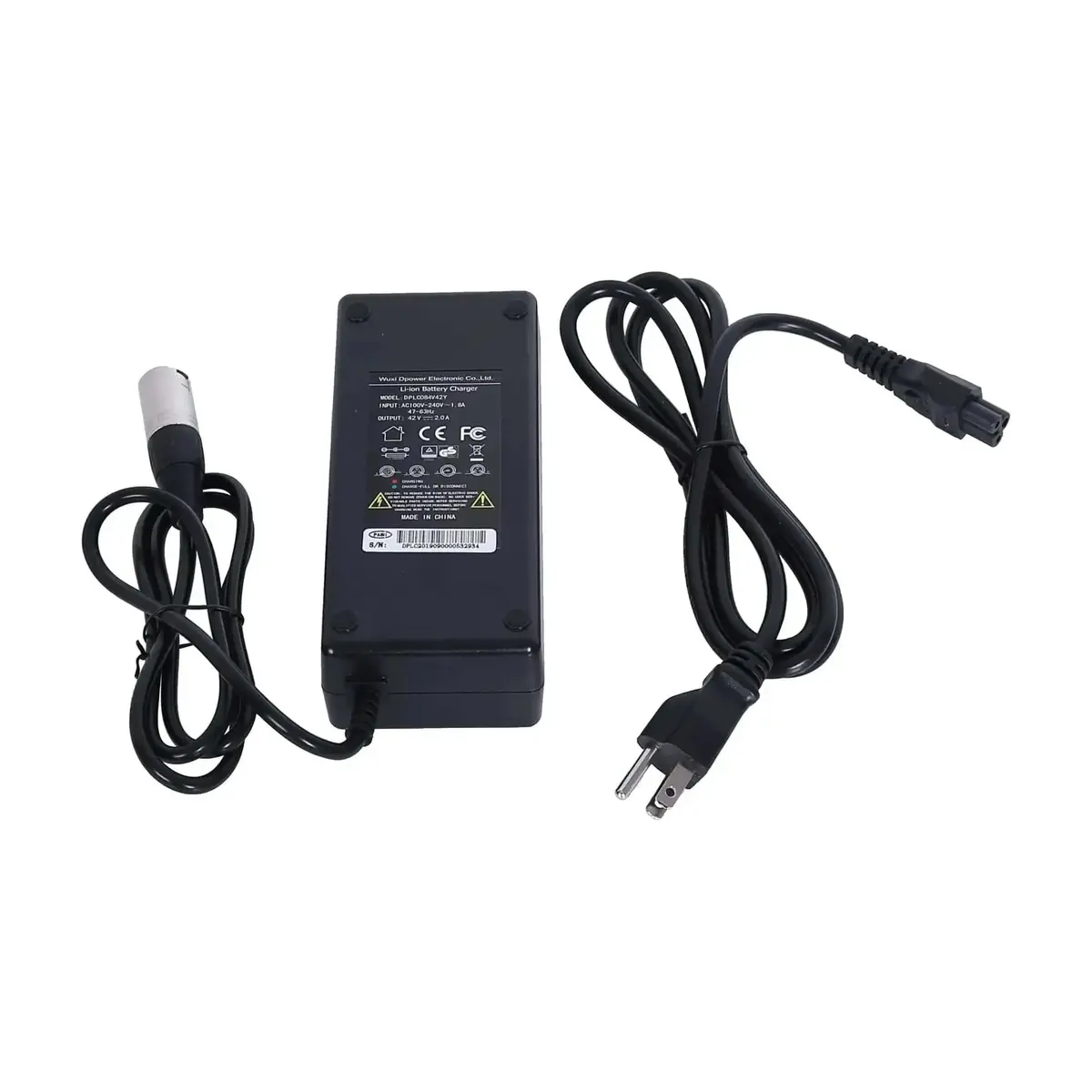

CHARGER FOR ECOTRIC 36V 20 inch fat tire folding bikes and Starfish, Peacedove, Dolphin E-Bikes, SKU: SH-CDQ001-UL

This is an original lithium battery charger for Fat Tire 20 36V, Starfish, peacedove, Dolphin. The charger case is made of PS/ABS material, high-temperature resistance, fire retardant, safe and durable, and also helps heat dissipation.

FEATURES

• Compatibility: Fat Tire 20 36V, Starfish, Dolphin.
• Input Characteristics:
• Nominal Voltage: 100-240VAC Variation Voltage: 90-264VAC
• Nominal Frequency: 50-60Hz, Variation Frequency:47-63Hz
• Current: 1.8A
• Output Characteristics:
• Max Power Output: 84W Voltage:DC 42V Current: 2.0A
• Indication Light: red light when charging, green light when fully charged.
• Power Cord: 5 inches in length.
• Charger plug: Common 3 pin XLR connector.
• Protection: Short Circuit Protection, Overcurrent Protection, Over Voltage Protection, Battery polarity error protection.

NOTE

• Please first connect the plug to the battery, and then connect the charger to an AC outlet.
• When the battery is charging, it is normal that the charger is getting hot.
• Specifically designed for lithium batteries, not for lead-acid batteries.
• Do not operate the charger if damaged.
• The charger is only suitable for 36V batteries and not for 24V batteries or lower.
• We send them to you by USPS, please write the right shipping address.

CHARGER FOR ECOTRIC 26 INCH FAT TIRE E-BIKE, ROCKET, VORTEX, LEOPARD E-BIKES, SKU: SH-CDQ002-UL

This is an original lithium battery charger for Fat Tire 26 Beach Snow, Vortex, Rocket, Leopard, and Swallow, Lark, Peacedove. The charger case is made of PS/ABS material, high-temperature resistance, fire retardant, safe and durable, and also helps heat dissipation.

FEATURES

• Compatibility: NAKTO Fat Tire 26 Beach Snow, Vortex, Rocket, Leopard, Swallow, Lark and Peacedove E-Bikes
• Input Characteristics :
• Nominal Voltage: 100-240VAC Variation Voltage: 90-264VAC
• Nominal Frequency: 50-60Hz, Variation Frequency:47-63Hz
• Current: 1.8A
• Output Characteristics:
• Max Power Output: 84W Voltage:DC 42V Current: 2.0A
• Indication Light: red light when charging, green light when fully charged.
• Power Cord: 5 inches in length.
• Charger plug: Female DC interface, 5.5mm (0.21inch, outside diameter) x 2.1mm(0.08in, inner diameter) x10mm(0.39inch).
• Protection – Short Circuit Protection, Overcurrent Protection, Over Voltage Protection, Battery polarity error protection.

NOTE

• Please first connect the plug to the battery, and then connect the charger to an AC outlet.
• When the battery is charging, it is normal that the charger is getting hot.
• Specifically designed for lithium batteries, not for lead-acid batteries
• Do not operate the charger if damaged.
• The charger is only suitable for 36V batteries and not for 24V batteries or lower.
• We send them to you by USPS, please write the right shipping address

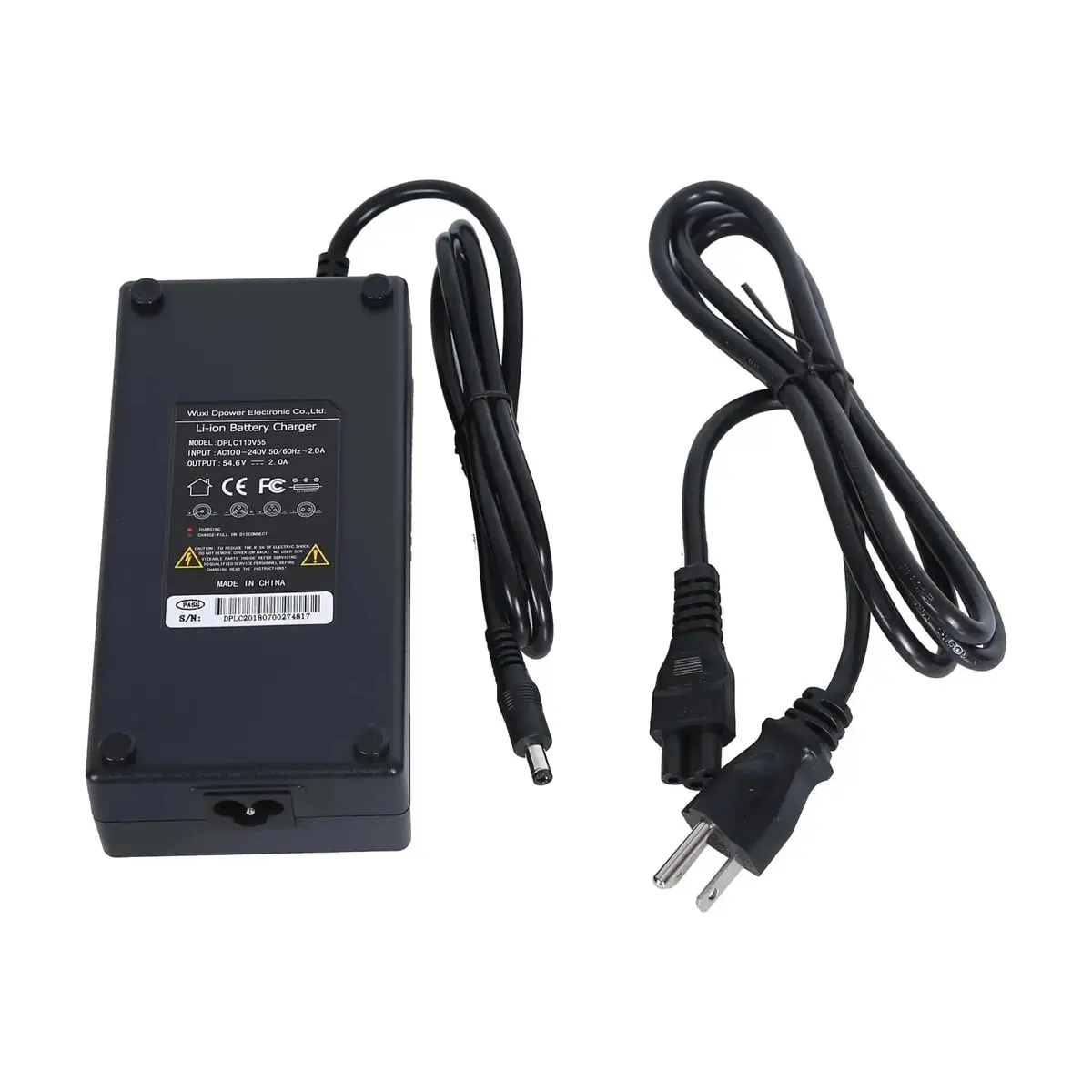

CHARGER FOR ECOTRIC SEAGULL AND BISON E-BIKES, SKU: SH-CDQ006

This is an original lithium battery charger for Seagull, Bison, Tornado. The charger case is made of PS/ABS material, high-temperature resistance, fire retardant, safe and durable, and also helps heat dissipation.

FEATURES

• Compatibility: Seagull, Bison, Tornado.
• Input Characteristics :
• Nominal Voltage: 100-240VAC Variation Voltage: 90-264VAC
• Nominal Frequency: 50-60Hz, Variation Frequency:47-63Hz
• Current: 2.0A
• Output Characteristics:
• Voltage:DC 54.6V Current: 2.0A
• Indication Light: red light when charging, green light when fully charged.
• Power Cord: 5 inches in length.
• Charger plug: Female DC interface, 5.5mm (0.21inch, outside diameter) x 2.1mm(0.08in, inner diameter) x10mm(0.39inch).
• Protection – Short Circuit Protection, Overcurrent Protection, Over Voltage Protection, Battery polarity error protection.

NOTE

• Please first connect the plug to the battery, and then connect the charger to an AC outlet.
• When the battery is charging, it is normal that the charger is getting hot.
• Specifically designed for lithium batteries, not for lead-acid batteries.
• Do not operate the charger if damaged.
• The charger is only suitable for 48V batteries and not for 36V batteries or lower.
• We send them to you by USPS, please write the right shipping address.
