Description

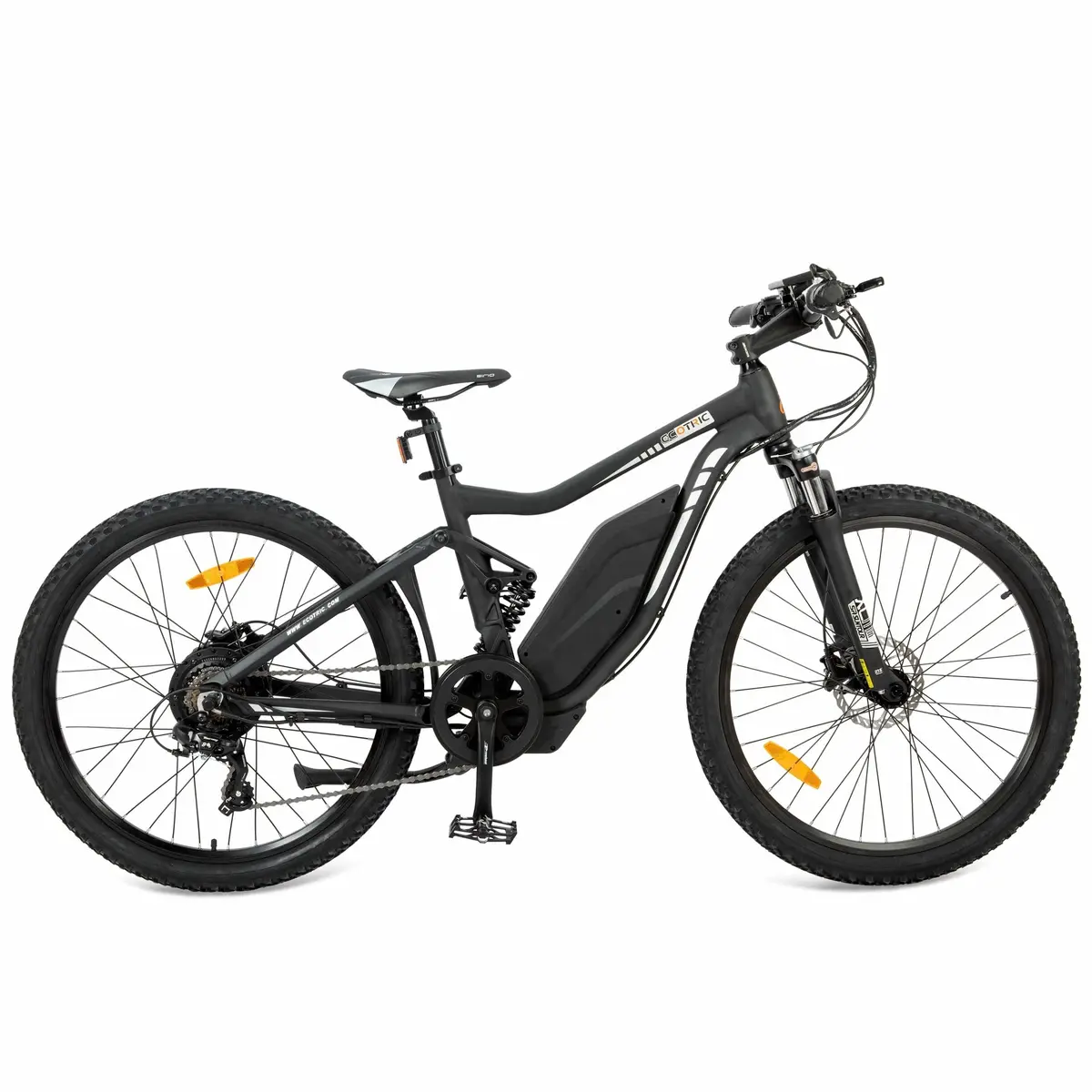

A Full-Suspension Electric Mountain Bike
Extraordinary design visible at a glance. But it’s not just about lookng good; it’s much more than that. With a high-quality 6061 aluminum frame that imbues it with strength and minimizes weight., the bike maximizes shock absorption and reduces bumps on the road along with the front suspension and a newly designed central shock absorber. Moreover, there is no terrain that it can’t conquer. Ride on this e-bike and you’ll be dominating the terrain like nothing can stop you.
750W Brushless Geared Hub Motor
- Strong power
- High efficiency
- Quieter, lighter, smoother
- Revolutions: 320±10rpm
- Pure electric power mileage : over 19 miles.
- Pedal assist (When pedaling, the motor will provide power to assist the riding)
- Throttle control.
- Small deviations may exist, but they will be within the margin of error
48V 12AH lithium-ion Battery
- High energy density
- 400-600 cycles service life
- Up to 20+ mile range
- Samsung cells
- A 18-month warranty
- Pure electric maximum speed：20 Mph (Factory Default), Maximum speed can be set higher according to the instruction.
- Pure electric power mileage : over 19 miles.
26″ × 2.35″ Mountain Tires
- Adapt to mountain, sand and other complex topography
- Inner tube: 26*2.20/2.35
- Valve stem: American standard size
- attached: valve cap
The central shock absorber
- Strong shock absorption and comfortable riding
- More than Safe, Balance, Fast and Stable for your Cycling.
Aluminum Alloy Frame
Lightweight and compact built, Head tube Ø51*Ø51*120L.
Ergonomic Seat
- More comfortable cushion.
- Note: The height of the handlebars is not adjustable,and we do not recommend customers to modify them. If you need to refit, please go to a professional bicycle shop for help.
Why choose ECOTRIC UL certified ebikes?
UL has been around for 125 years ensuring the safety and accountability of electrical products in everyday American life. Being UL certified illustrates a businesses’ dedication to consumer safety, as well as the quality of their products. Another important caveat of UL certification is for insurance purposes and customer security. It’s a true indication of an item’s safety and longevity.
Sizing & Manual
Manual (Click here)
Specification
|
MODEL SIZE |
1800*630*1050mm |
|
MOTOR |
Rear Hub 48V 750W |
|
BATTERY |
48V 12AH |
|
DERAILLEUR |
7 Speed SHIMANO |
|
DISPLAY |
Ecotric Smart LCD |
|
WEIGHT CAPACITY |
265lb |
|
SENSOR |
Speed Sensor |
|
FRONT BRAKE |
Tektro Hydraulic Disc 180mm Rotor |
|
RECOMMENDED RIDER |
5’3”– 6’3” |
|
FUNCTIONS |
Pedal Assist |
|
SEAT POST |
Suspension Comfort |
|
TIRES |
26’’×2.35’’ Fat Tires |
|
FENDERS |
Optional |
|
FRAME |
Aluminum Alloy |
|
WEIGHT WITH BATTERY |
62 Lb |
|
CHARGING TIME |
6-8Hours |
|
REAR BRAKE |
Tektro Hydraulic Disc 180mm Rotor |
|
BATTERY LIFE |
Up To 1000 Cycles |
*Ecotric Bicycles Set Speed Limit According To United States Federal Regulations, Maximum Speed In Power Mode Is Programmable And Can Be Adapted To The Local Regulations Of Any Country.
*All Range Estimates Are Contingent Upon Rider And Towing Weight, Wind Speed And Terrain.
