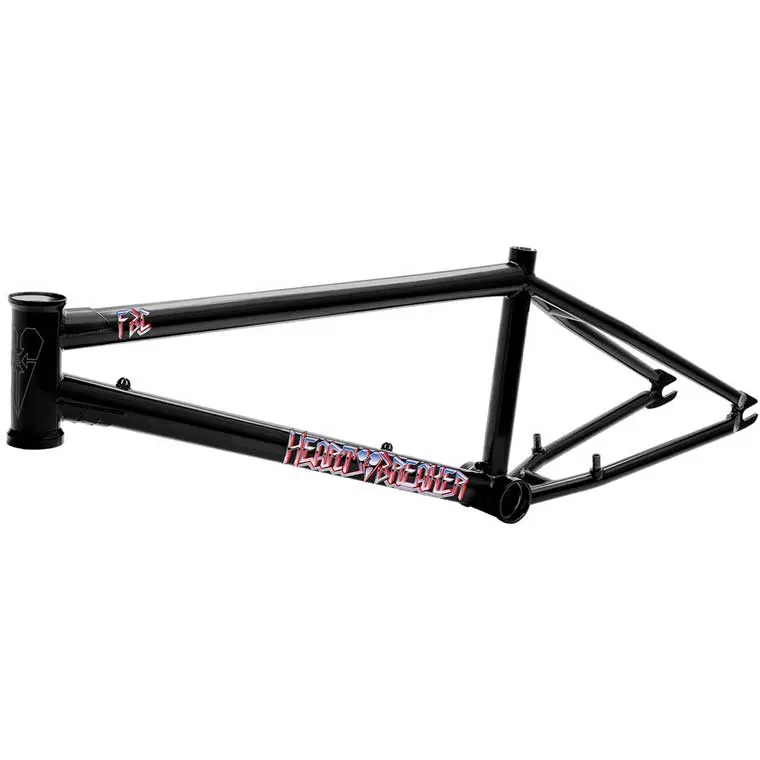

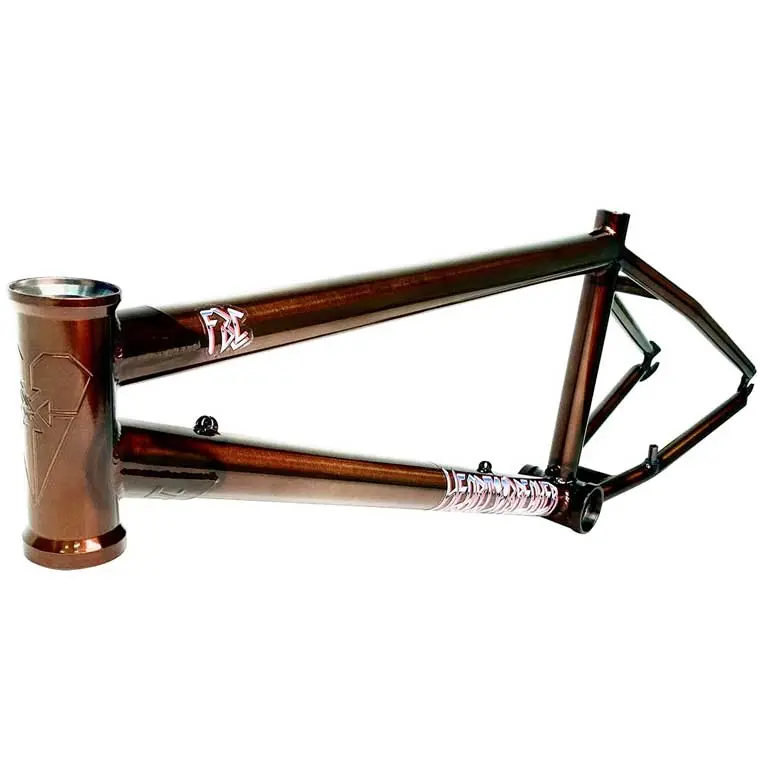

Fit Heartbreaker BMX Frame

Description

21″, 21.25″, 21.5″ TT
13.8″ – 14.5″ CS
74.5° HA
71° SA
11.35″ BBH
9.15″ SOH
Integrated head tube (4.625″ tall)
Mid BB shell
14mm, 4Q Baked dropouts
welded CS brake mounts, two cable guides on DT, cable stop insert in ST 21” – 5.18 lb (2.35 kg)
21.125” – 5.27 lb (2.39 kg)
21.5” – 5.3 lb (2.4 kg) – – – – – Butted Supertherm Top Tube Straight Gauge Supertherm Down Tube Double Gussets Slightly Tapered Seat Stays Slightly tapered Single Bend Chain Stays 2.4″ tire clearance (even when slammed; S&M tires – others might not fit) Double Butted Seat Tube Longer Drop Out Slots Welded on Chain Stay Brake Mounts Thru the Seat Tube Cable Routing Double Down Tube Cable Guides Engraved Heartbreaker Logo Head Tube American Made – – – – – IDEAL GEARING: 11T 30/11: 13.875 W/Out Half Link 30/11: 14.125 W/ Half Link 30/11: 14.375 W/Out Half Link 28/11: 13.875 W/ Half Link 28/11: 14.125 W/Out Half Link 28/11: 14.375 W/ Half Link 10T 30/10: 14.00 W/Out Half Link 30/10: 14.25 W/ Half Link 28/10: 14.00 W/ Half Link 28/10: 14.25 W/Out Half Link 27/10: 13.875 W/Out Half Link 27/10: 14.125 W/ Half Link 27/10: 14.375 W/Out Half Link 9T 28/9: 13.875 W/Out Half Link 28/9: 14.125 W/ Half Link 28/9: 14.375 W/Out Half Link 27/9: 14.00 W/Out Half Link 27/9: 14.25 W/ Half Link 25/9: 14.00 W/ Half Link 25/9: 14.25 W/Out Half Link 8T 23/8: 13.875 W/ Half Link 23/8: 14.125 W/Out Half Link 23/8: 14.375 W/ Half Link 25/8: 13.875 W/Out Half Link 25/8: 14.125 W/ Half Link 25/8: 14.375 W/Out Half Link 26/8: 14.00 W/ Half Link 26/8: 14.25 W/ Half Link
