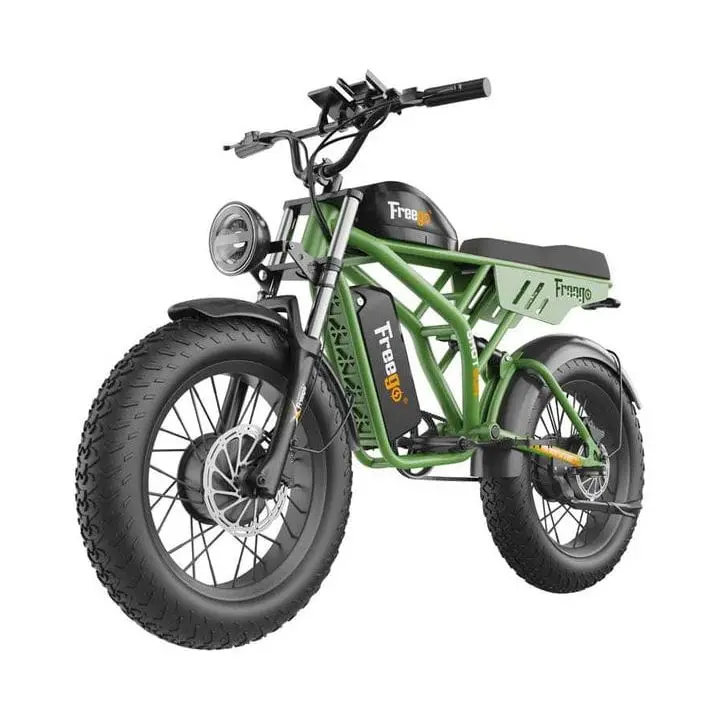

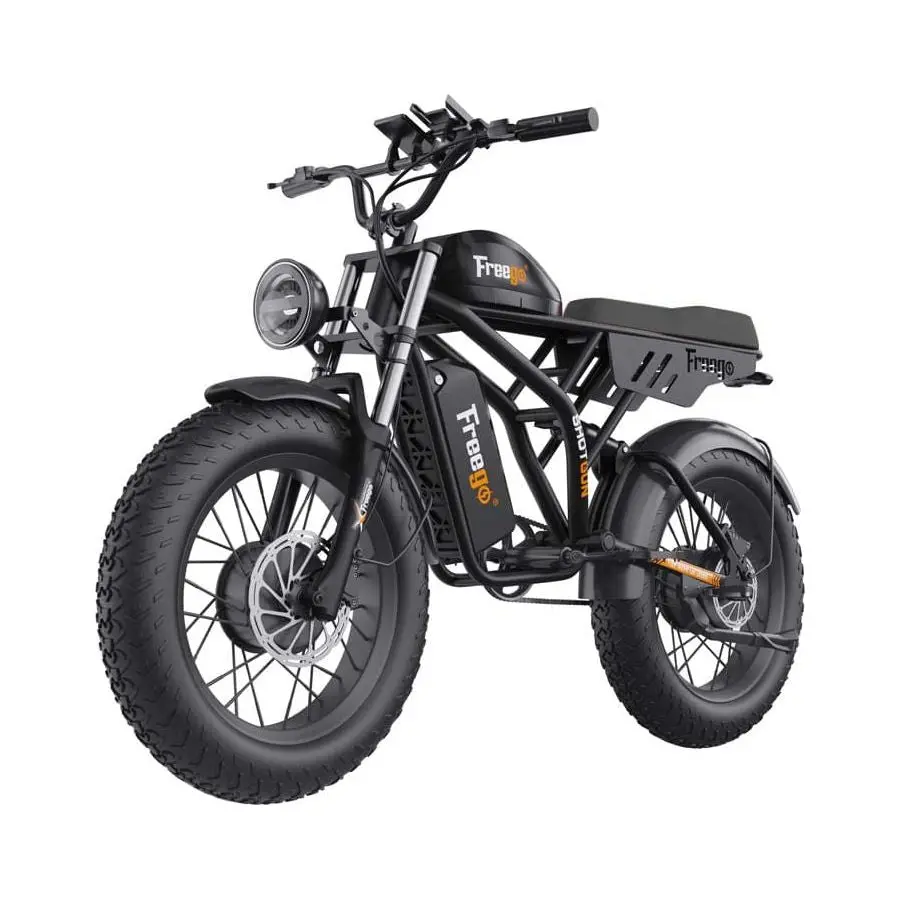

Freego Shotgun F3 Pro Max – Dual Motor/Battery Fat-Tire Electric Bike
Unleash Power and Endurance
Experience unmatched performance with the Freego F3 Pro Max. This high-powered electric bike is built for thrill-seekers and commuters alike—blending aggressive dual motors with an ultra-long-range battery and full suspension for comfort on any terrain.
🚀 Key Features
- Dual 750W Motors (1500W total): Delivers up to 34 MPH in off-road mode
- 48V 55Ah Battery (2640Wh): Travel up to 103 miles per charge
- Full Suspension: Smooth ride with front & rear shock absorption
- Hydraulic Disc Brakes: 180mm & 203mm rotors ensure strong stopping power
- 20″ x 4″ Fat Tires: Ready for pavement, dirt, gravel, or snow
- LCD Display & USB Port: Track performance and charge devices on the go
- LED Lights: Front headlight and rear warning light for safety
📊 Technical Specifications
| Motor | Dual 750W (1500W total) |
| Battery | 48V 55Ah (2640Wh) |
| Range | 60–103 miles |
| Top Speed | 20 MPH, (Up to 34 MPH in Off-road mode) |
| Charging Time | 7–10 hours |
| Frame | High-strength steel pipe |
| Weight | 108 lbs (49 kg) |
| Max Load | 400 lbs (180 kg) |
| Suspension | Full suspension (Front & Rear) |
| Brakes | Hydraulic Disc (Front & Rear) |
| Tires | 20″ x 4″ Fat Tires |
| Lights | LED Headlight + Rear Warning Light |
| Display | Multi-function LCD with USB port |
| Rider Height | 5’3″ – 6’4″ |
| Gearing | Single Gear |
| Charger | 54V 3A (100–240V input) |
📦 What’s in the Box
- Freego F3 Pro Max Electric Bike
- 48V 55Ah Battery
- 54V Charger
- Pedals
- LED Headlight and Rear Light
- Kickstand
- Smartphone Mount
- Owner’s Manual
Built for all-terrain domination and long-distance comfort, the F3 Pro Max redefines what an electric fat-tire bike can do.
Frame Dimensions
F3 Pro Max – Frame Dimensions
| Label | Measurement | Label | Measurement |
|---|---|---|---|
| A – Handlebar Length | 28.3″ / 72 cm | B – Total Length | 67.7″ / 172 cm |
| C – Total Height | 44.1″ / 112 cm | D – Seat Length | 18.9″ / 48 cm |
| E – Top Tube Length | 35.8″ / 91 cm | F – Tire Width | 4″ / 10 cm |
| G – Wheel Diameter | 21.7″ / 55 cm | H – Seat Height | 33.5″ / 85 cm |
| I – Wheelbase | 45.3″ / 115 cm | J – Seat Height from Tire | 8.7″ / 22 cm |
| K – Head Tube Length | 24.4″ / 62 cm | L – Battery Length | 13.8″ / 35 cm |
Specification
Shotgun Flash Model F3 Pro Max – Technical Specifications
| Motor Power | Dual 750W motors (1500W total) |
|---|---|
| Battery | 48V, 54AH (2600Wh) |
| Range | 44–56 miles (Dual Motor) / 56–80 miles (Single Motor) |
| Top Speed | 20 MPH (Throttle), 28 MPH (Pedal Assist), 35 MPH (Off-road Mode) |
| Frame Material | High-strength Steel Pipe |
| Max Load | 400 lbs |
| Weight (Net/Gross) | 129 lbs / 145 lbs |
| Charging Time | 10–12 Hours |
| Throttle Type | Thumb |
| Pedal Assist | No (single gear drivetrain) |
| Gearing | Single Gear |
| Brake System | Hydraulic Disc Brakes (Front & Rear) |
| Tire Size | 20 × 4 in fat tires (Front & Rear) |
| Suspension | Full Suspension (Front & Rear) |
| Lights | Headlight & Taillight included |
| Suggested Rider Height | 5′4″ – 6′5″ |
| Charger | Standard 48V charger (not specified) |
A. Handlebar Length: 28.3″/ 72cm
B. Total Length: 67.7″/ 172cm
C. Total Height: 44.1″/ 112cm
D. Seat Length: 18.9″/ 48cm
E. Top Tube Length: 35.8″/ 91cm
F. Tire Width: 4″/ 10cm
G. Wheel Diameter: 21.7″/ 55cm
H. Seat to Ground Height: 33.5″/ 85cm
I. Wheelbase: 45.3″/ 115cm
J. Seat Height from Tire: 8.7″/ 22cm
K. Head Tube Length: 24.4″/ 62cm
L. Battery Length: 13.8″/ 35cm
*Manual measurement, there is 0-3 cm error.
