Description

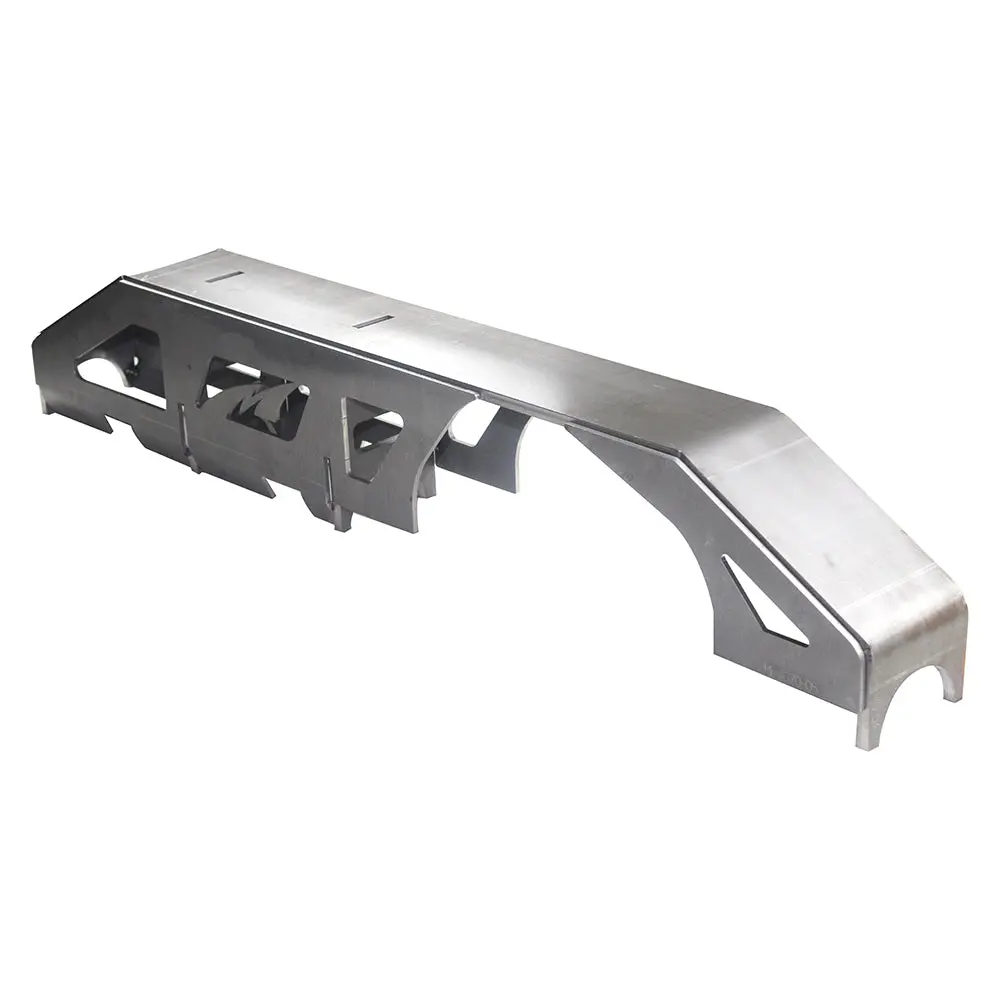

The 78-79 Dana 60 truss from Motobilt will greatly increase the strength of your front axle. The main structure of this axle truss is laser cut and cnc bent from 3/8 inch thick steel plate. Supporting the main truss are 3/8 inch and 3/16 inch structural bracing. The top portion of the truss is approximately 5.5 inches wide and provides ample room for a suspension link mount to be welded onto it. This axle truss can be used for a 3 or 4 link setup.
Specifications
- Material: Steel
- Thickness: 3/8 Inch
- 3/8 inch thick laser cut steel plate main truss
- 3/8 inch and 3/16 inch steel plate support structure
- Full length span of axle for increased strength
- Large flat mounting surface for link brackets
- Weight: 55lbs (approx.)
Suggested Parts:
- MB1568 – Universal Upper Triangulated Link Mount – Front Axle
- MB4006 – Dana 60 Angled Lower Link Mount Kit
- MB4010 – Dana 60 Heavy Duty Diff Cover
- MB1542- Track Bar Bracket
Product Components
Axle Truss Prep
Axle Truss Prep
