Heavy-Duty Dana 60 Axle Truss Kit for Ford Super Duty (2005–Present)

Description

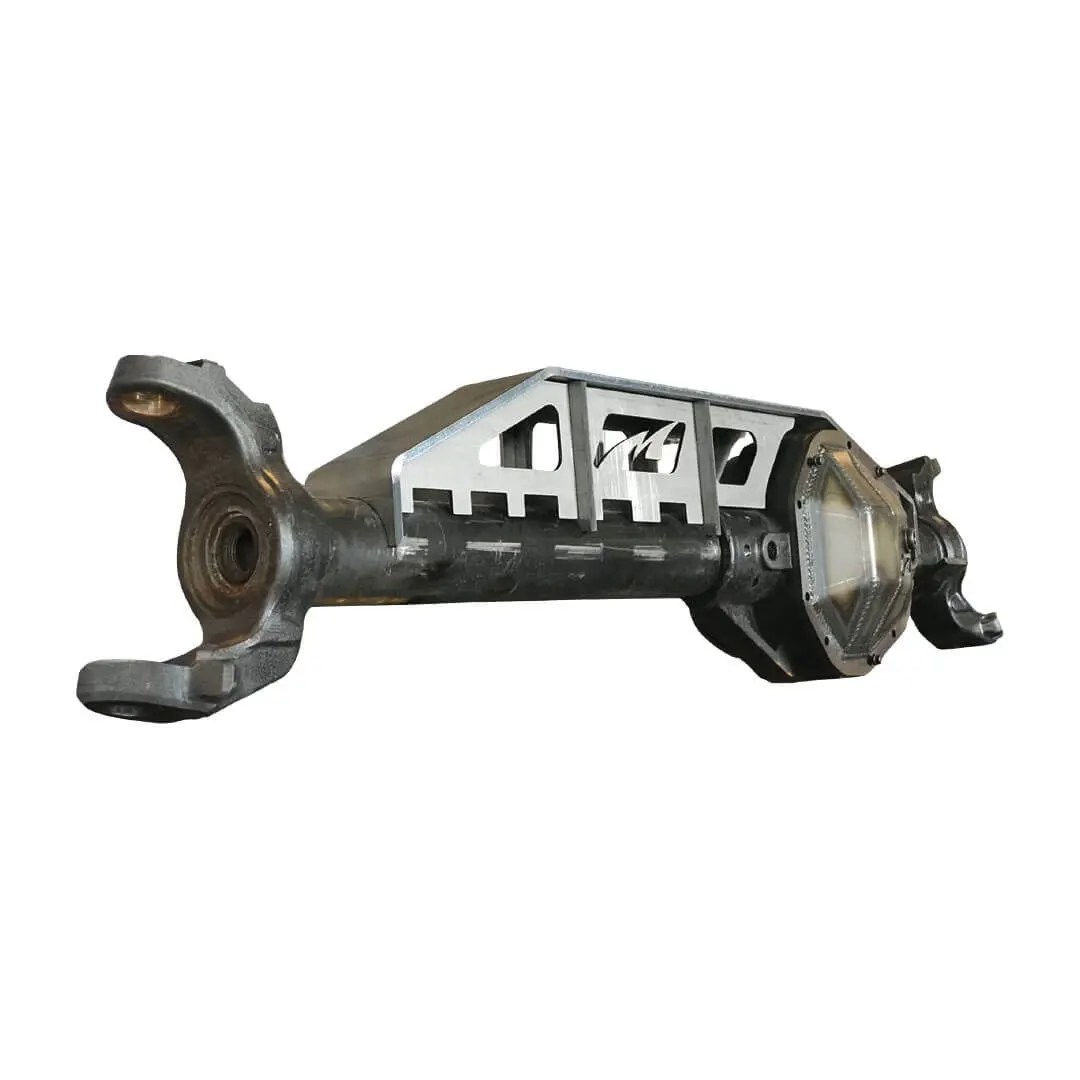

The Ford Super Duty Dana 60 truss from Motobilt will greatly increase the strength of your front axle. The main structure of this axle truss is laser cut and cnc bent from 3/8 inch thick steel plate. Supporting the main truss are 3/8 inch and 3/16 inch structural bracing. The top portion of the truss is approximately 5.5 inches wide and provides ample room for a suspension link mount to be welded onto it. Can be used for a 3 or 4 link setup.

Features:

• Material: Steel
• Thickness: 3/8 Inch
• 3/8 inch thick laser cut steel plate main truss
• 3/8 inch and 3/16 inch steel plate support structure
• Full length span of axle for increased strength
• Large flat mounting surface for link brackets.
• Notes: Requires removal of factory brackets and housing on driver’s side must be trimmed aproximately 2 inches
• Fits: 2005 and Up Ford Super Duty
• Weight: 55lbs (approx.)

Notes:

• Approximately 2”s of the short side cast housing will have to be removed along with the other factory brackets.

Suggested Parts:

• MB4082 – High Steer Brackets
• MB4015 – Super Duty Dana 60 Lower Link Mount Kit
• MB4043 – Super Duty Dana 60 heavy Duty Diff Cover
• MB1542-175-350 – Track Bar Bracket Adjustable
