Description
Warranty
- 5 Year / 1200 Hour (First 2 Years No Hour Limit)
- 3 Year Limited Engine
|
Literature
- Super 104 Owners Manual
- Super 104 General Service Manual
- Super 104 Kawasaki FX1000 EFI Parts Manual
- Hustler Turf Catalog
|

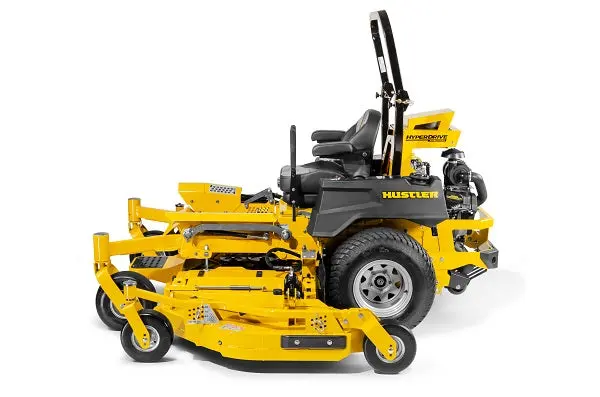

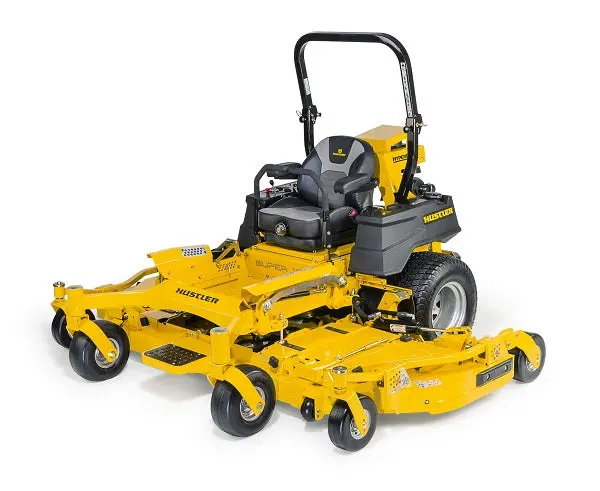

104 Inch Width Of Cut Makes Big Jobs Easy.
Hustler’s Super 104™ can easily handle acres of work. Offering a 104″ width of cut, zero-turn precision and up to an impressive 11 mph speed, this machine is in a class by itself.
- HyperDrive® Hydro System: Features industrial-grade pumps and motors to handle tough jobs and long days.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Hydraulic Deck Height Adjustment: Raising and lowering your cutting height has never been easier.
- I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.
- Commercial-Grade Engines: Vanguard Big Block™, Vanguard Big Block™ EFI with Oil Guard, Kawasaki FX1000, and FX1000 EFI engine options.
- Hydraulic Wings: Easily raise and lower wings for transporting.
- Wings fold to 80″: 80″ transport width fits most trailers for easy travel between jobs.
- 104″ Width of Cut: The widest and most productive of any commercial zero-turn mower.
Hustler Turf Accessory Compatibility Chart
|
Hustler Super 104 Accessories
|
| Mulch Kit |
125874 |
| Flex Forks Kit (main frame) |
606843 |
| Flex Forks Wing Kit (must order 123618 as well) |
606671 |
| Wings Support Kit |
123618 |
| Premium Anti-Scalp Kit |
117692 |
| Beacon Kit |
110467 |
| Flasher Kit |
124554 |
| Steering Extension Kit |
122275 |
| Hitch Kit |
123915 |
| Front Light Bar Kit |
128867 |
| Run Flat Wheel assembly 15 x 6-6 Black |
607689 |
| Michelin X-Tweel Turf Tire XL 26 x 12N12 |
607445 |
__________________________________________________________________
Specifications
Engine
|
| Engine Manufacturer |
Kawasaki FX1000 EFI |
| Engine Horsepower |
38.5 |
| Displacement |
999cc |
| Cooling |
Air Cooled |
| Air Cleaner |
Heavy duty air canister |
| Engine Warranty |
3 year warranty |
Drive System
|
| Type |
Dual Hydrostatic |
| Transmission |
Danfoss DDC20 pumps with Parker TG wheel motors |
| Hydraulic Lines |
Stainless Parker Seal-Loc Technology |
| Reservoir Capacity |
3 gallons |
| Hydraulic Cooling |
Oil Cooler w/ 9″ fan |
| Fuel Capacity |
12 gal. |
| Ground Speed (Fwd) |
Up to 11 mph |
| Parking Brake |
Integrated with steering levers |
Deck
|
| Cutting Width |
104″ |
| Cutting Height |
1″ to 5.5″ |
| Deck Depth |
5.5″ |
| Deck Lift |
Hydraulic powered |
| Number of Blades |
5 |
| Blade Length |
23.86″-20.50″ |
| Blade Tip Speed |
Wing Decks: 15,800; Center Deck: 15,500 |
| Spindles |
Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement |
Electric PTO Clutch |
| Deck Material |
11 gauge welded steel |
| Spindle Mounts |
Reinforced 7 ga doubler |
| Impact Trim Area |
1.5″ x .375″ steel bar |
Construction
|
| Frame |
1.5″ X 3″ steel tubing |
| Front Axle |
Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap |
| Front Caster Fork |
Fabricated 1/2″ steel |
General
|
| Seat |
I3M Suspension Seat (adjustable armrests & back) |
| Cup Holder |
Yes |
Dimensions
|
| Front Tire (inches) |
15 x 6-6 |
| Drive Tire (inches) |
26 x 12-12 |
| Wing Tire (inches) |
11 x 4 Semi-Pneumatic |
| Weight (lbs) |
2500 |
| Height (inches) |
54″ (71.5″ w/ ROPS) |
| Length (inches) |
95.5″ |
| Width w/ Chute up (inches) |
106.1 wings down, 80″ wing up at gauge wheel, 72.5″ deck base |
| Tire-to-Tire Width (inches) |
60.3 |
| Productivity (Acres Per Hour) |
9.24 |
Warranty
|
| Warranty |
5 Year / 1200 Hour (First 2 Years No Hour Limit) |
If you have any questions about this Hustler Super 104-inch cut zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
