Description
Warranty
- 5 Year / 1200 Hour (First 2 Years No Hour Limit)
- 3 Year Limited Engine
|
Literature
- Super S Owners Manual
- Super S General Service Manual
- Super S 60″ Parts Manual
- Hustler Turf Catalog
|

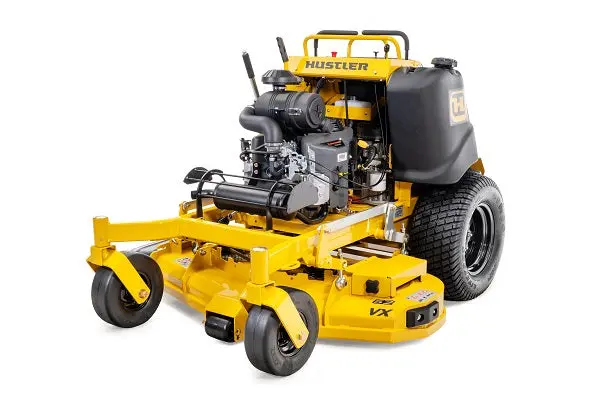

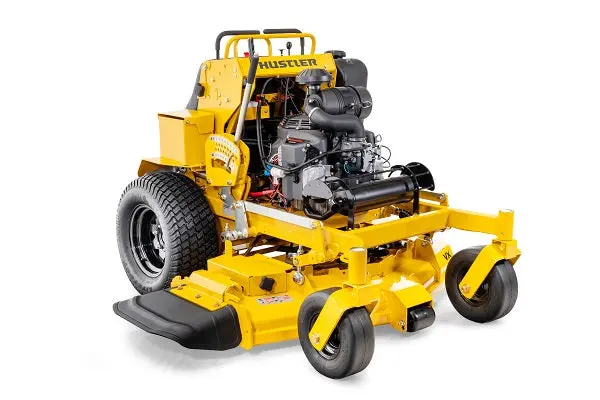

A Stand-On With Exceptional Operator Comfort, Control And Maneuverability
Hustler’s Super S® features superior operator comfort and positioning, operator-friendly controls, and a compact stance that makes navigating tight spaces easy.
- Pulley Covers: Toolless removable pulley covers for easy maintenance.
- Park Brake: Hand-operated lever to set the parking brake.
- Cut Height Adjustment: Hand-operated lever and pin to adjust deck/cutting height.
- Wide Operator Platform: For all-day mowing comfort and operator stability.
- Adjustable Foot Platform: Spring-loaded suspension platform for all-day comfort.
- Service-Friendly Design: Designed to make maintenance and service fast and easy.
- 24″ Rear Drive Tires: For superior traction. (48”, 52”, 60”)
- Adjustable Speed Controls: Allows you to go at your own pace for added control. Also helps with training new operators.
- VX4 Deck: Fabricated 7 ga. steel engineered for an extreme vacuum for enhanced performance and cut quality.
- Compact Design: Small footprint, can go where other machines can’t.
Hustler Turf Accessory Compatibility Chart
|
Hustler Super S Accessories
|
| Side Mesh Catcher 3.5 Bushel |
943654 |
| Side Steel Catcher 4.4 Bushel |
606045 |
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator)
|
GCSS |
Jumbo Aluminum Side Catcher 5 Bushel (Accelerator)
|
GCSSXL |
| Mulching Kit 60″ |
126127 |
| Stripe Kit 48″/52″/60″ |
126915 |
| Light Kit 48″/52″/60″ |
128646 |
| Trash Receptacle Kit 48″/52″/60″ |
127350 |
__________________________________________________________________
Specifications
Engine
|
| Engine Manufacturer |
Kawasaki FX850 EFI |
| Engine Horsepower |
29.5 |
| Displacement |
852cc |
| Cooling |
Air Cooled |
| Air Cleaner |
Heavy duty canister |
| Engine Warranty |
3 year |
Drive System
|
| Type |
Dual Hydrostatic |
| Transmission |
Hydro-Gear 12cc pump with Parker TL wheel motors |
| Fuel Capacity |
7.3 gal. |
| Ground Speed (Fwd) |
Up to 9 mph |
| Parking Brake |
Hand-operated drum brakes |
Deck
|
| Cutting Width |
60″ |
| Cutting Height |
1.5″ to 5.5″ |
| Deck Depth |
5.5″ |
| Deck Lift |
Hand Operated |
| Number of Blades |
3 |
| Blade Length |
20.50″ |
| Blade Tip Speed |
18,400 |
| Spindles |
Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement |
Electric PTO Clutch |
| Deck Material |
7 gauge fabricated with 7 gauge wrappers |
| Spindle Mounts |
7 gauge with 7 gauge doubler |
| Impact Trim Area |
11 gauge formed channel with rolled edge |
Construction
|
| Frame |
1.5″ X 3″ steel tubing |
| Engine Plate |
7 gauge with 11 gauge jackshaft doubler |
| Operator Platform |
7 gauge with embossed tread pattern |
| Front Axle |
Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap |
| Front Caster Fork |
Fabricated 3/8″ steel |
Dimensions
|
| Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) |
24 x 12-12 |
| Weight (lbs) |
1232 |
| Height (Inches) |
47 |
| Length (Inches) |
70.75 |
| Width w/ Chute Up (Inches) |
61.7 |
| Tire-to-Tire Width (Inches) |
49 |
| Productivity (Acres Per Hour) |
4.36 |
Warranty
|
| Warranty |
5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher
|
| Catcher Style |
Side Catcher |
| Powered / Non-Powered |
Non-powered |
| Catcher Capacity |
3.5 bushel |
| Mower Length w/ Catcher |
66.5″ |
| Mower Width w/ Catcher |
80″ |
If you have any questions about this Hustler Super S 60-inch stand-up mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
