Description
Warranty
- 5 Year / 1200 Hour (First 2 Years No Hour Limit)
- 5 Year Engine
|
Literature
- Super Z HyperDrive Owners Manual
- Super Z HyperDrive General Service Manual
- Super Z HyperDrive 72″ Parts Manual
- Hustler Turf Catalog
|

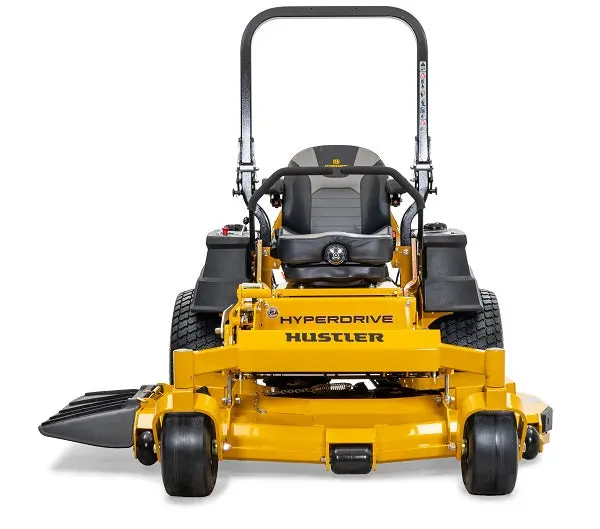

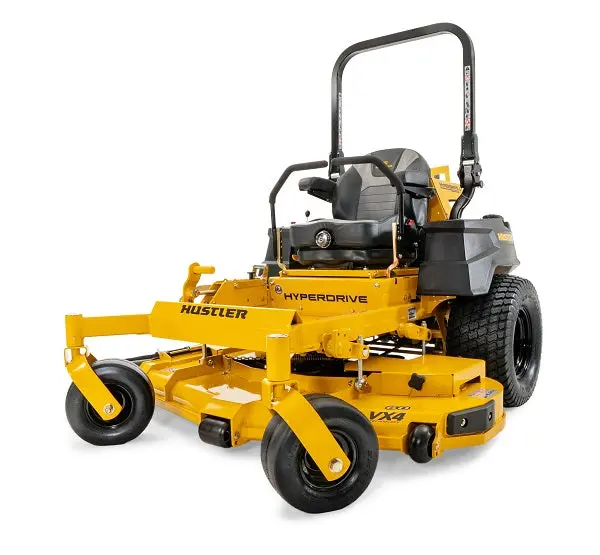

Powerhouse that Delivers Unrivaled Performance
The HyperDrive® features Hustler’s exclusive HyperDrive transmission system – the largest, most durable drive system in the industry. And, it’s backed by a 3,000 hour drive system warranty.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”- 5.5” with your foot.
- I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.
- Commercial-grade Torque: Danfoss DDC-20 pumps and Parker TG280 wheel motors.
- VX4® Deck: Fabricated 7 ga. steel deck engineered to move more grass at high-speeds while maintaining cut quality.
- Easy Serviceability: Flip-up seat pan, removable floor pan and vented pulley covers for easy and simple maintenance.
- Large Drive Tire: Large 26″ drive tires provide a smoother ride experience.
- Hydraulic System Warranty: 3000-Hour pump and motor warranty unmatched in the industry.
- HyperDrive Hydro System: A Hustler® exclusive, industrial pumps and high torque wheel motors, 3-gallon reservoir, oil cooler and hot oil shuttle.
Hustler Turf Accessory Compatibility Chart
|
Hustler Super Z Hyperdrive Accessories
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) |
943571 |
| Bac-Vac Catcher (must order (1) adapter kit below to complete) |
943563 |
| 3 Bag and Bac-Vac Catcher Adapter 72″ |
128800 |
| Fabric Side Catcher 3.5 bushel (no adapter needed) |
943654 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
GCSS |
Jumbo Aluminum Side Catcher 5 Bushel (Accelerator)
|
GCSSXL |
| Mulching Kit 72″ |
124316 |
| Flex Forks Kit (cannot use with Bagger installed) |
606696 |
| Front Light Bar Kit |
128867 |
| Side Light Bar Kit (must purchase 128867 to add side light) |
128869 |
| Beacon Kit |
110467 |
| Flasher Kit |
124554 |
| Hitch Kit |
123915 |
| Sand Kit 72″ |
124139 |
| Steering Lever Extension Kit |
122760 |
| Stripe Kit 66″, 72″ Deck |
116842 |
| Rear Anti-Scalp (Dual) 72″ Deck |
113937 |
| Rear Anti-Scalp (Single) 54″, 60″, 66″, 72″ Deck |
113910 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) |
607444 |
| Michelin X-Tweel Turf 24 x 12N12 (1 tire) |
607445 |
| Semi-Pneumatic Tire – tire/wheel assembly 13 x 6.5 x 6 |
607964 |
__________________________________________________________________
Specifications
Engine
|
| Engine Manufacturer |
Vanguard Big Block EFI |
| Engine Horsepower |
40 |
| Displacement |
993cc |
| Cooling |
Air Cooled |
| Air Cleaner |
Heavy Duty Canister |
| Engine Warranty |
5 year |
Drive System
|
| Type |
Dual Hydrostatic |
| Transmission |
Dual Hydrostatic Danfoss DDC-20 Transmission w/Parker TG wheel motors |
| Hydraulic Lines |
Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity |
3 gallons |
| Hydraulic Cooling |
Oil Cooler w/9″ fan |
| Fuel Capacity |
11.7 gal. |
| Ground Speed (Fwd) |
Up to 16 mph |
| Parking Brake |
Integrated with steering levers |
Deck
|
| Cutting Width |
72″ |
| Cutting Height |
1″ to 5.5″ |
| Deck Depth |
5.5″ |
| Deck Lift |
Foot Operated |
| Number of Blades |
3 |
| Blade Length |
24.50″ |
| Blade Tip Speed |
18,500 |
| Spindles |
Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement |
Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge |
| Spindle Mounts |
Reinforced 7 gauge stamped disc |
| Impact Trim Area |
Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5″ x .375″ steel bar |
Construction
|
| Frame |
1.5″ X 3″ steel tubing |
| Front Axle |
Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap |
| Front Caster Fork |
Fabricated 1/2″ steel |
General
|
| Seat |
I3M Suspension Seat (adjustable armrests & back) |
| Cup Holder |
Yes |
Dimensions
|
| Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) |
26 x 12-12 |
| Weight (lbs) |
1596 |
| Height (Inches) |
47.8, 73.5 w/ ROPS up |
| Length (Inches) |
93 |
| Width w/ Chute Up (Inches) |
72 |
| Tire-to-Tire Width (Inches) |
60 |
| Productivity (Acres Per Hour) |
9.31 |
Warranty
|
| Warranty |
5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher
|
| Catcher Style |
3-bag |
| Powered / Non-Powered |
Powered |
| Catcher Capacity |
12 bushel |
| Mower Length w/ Catcher |
119.2″ |
| Mower Width w/ Catcher |
82.9″ |
| Style 2: Catcher Style |
BAC-VAC |
| Style 2: Powered / Non-Powered |
Powered |
| Style 2: Catcher Capacity |
10 bushel |
| Style 2: Mower Length w/ Catcher |
112.7″ |
| Style 2: Mower Width w/ Catcher |
82.9″ |
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
