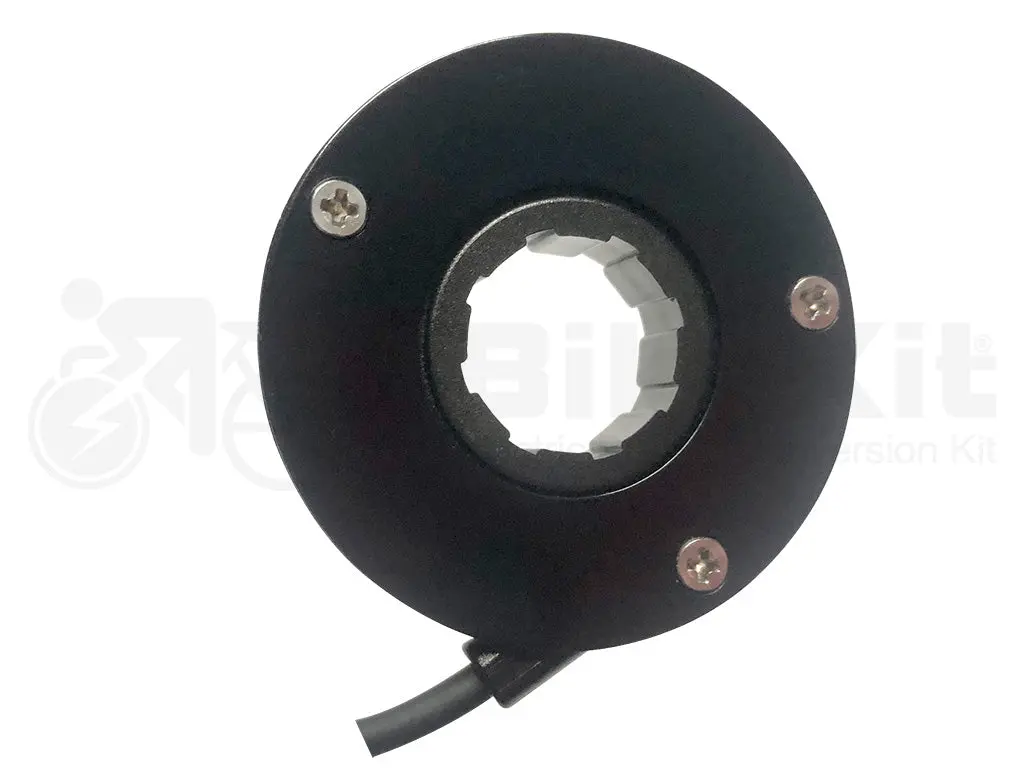

Mini III PAS Left-Side Position Sensor

• PAS (Pedal Assist) sensor for E-BikeKit systems
• DIN push-in connector for current E-BikeKit models
• Left-side (non-drive side) crank installation
• Hall-effect sensor — no external magnet required

This PAS sensor detects pedaling cadence and enables pedal-assist operation on compatible E-BikeKit and E-TrikeKit systems.

The E-BikeKit™ Mini III PAS Sensor senses pedaling cadence to activate motor assistance when riding in pedal-assist mode. It can be used alongside a throttle, allowing throttle override when desired.

This is a hall-effect, 5-volt PAS sensor designed for square-taper bottom brackets with internal splines.

Important fitment notes:

• Designed for square-taper bottom brackets with internal splines (will not work if the thickest part of the shaft exceeds 15.6 mm)
• Fits current model Eco-Tad, Fat-Tad, EZ-3 USX HD, T3 CX trikes, and other trikes using compatible square-taper bottom brackets
• Requires removal of the left crank arm for installation
• No PAS magnet required
