Description

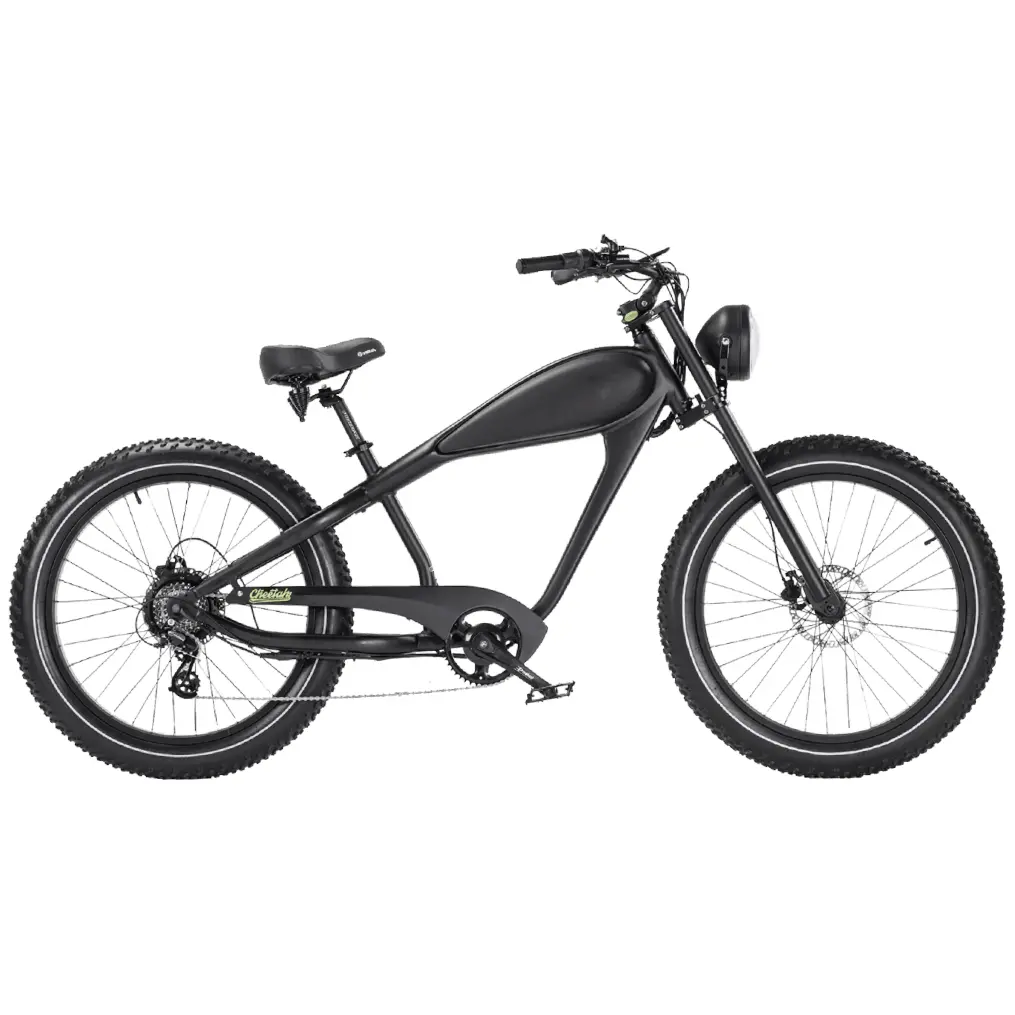

Cheetah Plus

An upgraded version of the Original (“OG”) Cheetah.  With 48V 17.5ah 840Wh, full black body with leather wrapped black cover, adjustable stem, KENDA anti-puncture tires with reflective strip.

Upgrade： All Black Frame with Black Tank Cover Wrapped in leather Heat stamp Revi logo
	Upgrade： Adjustable Stem More Upright Riding Posture
Upgrade： KENDA Anti-puncture Tire with Reflective Strip Boosted reliability and safety
	Brand New Head Light Design Brighter and Looks Cool
New Saddle Design – Wider, Thicker and Softer.
	USB Charging Port on Handle Bar
Upgrade： New LCD display firmware With smooth start feature. And now you can read error code on main screen.

Highlights

• Classic looking. Design patent owned by Revibikes.
• 48V 750W BAFANG™ High speed gear motor. Peak output over 1,000W.
• Bigger Size Full Color LCD display gives you all information you need: Odo, trip, speed, battery indicator. Drive mode selection. Daylight and Night model selection.
• Improved headlight. Lower failure rate and brighter.
• Front/Rear Tektro™ Hydraulic Brake stops Cheetah at any time if needed.
• Half twist throttle. Twist throttle, Cheetah will take you anywhere.

What’s Included

The Bike Itself	Front Light
Charger	Throttle
Pedals	User’s Manual & Necessary Tools
Kickstand	REVIBIKES Stickers & Aluminum Badges

* You’ll need to prepare an M5 Allen Key to finish the whole bike assembly

Key Information

	48V 750W		26″ 4 Fat Tire
	17.5Ah		45 Miles
	300 LBS Max Payload		Suitable for Rider‘s Height:  5’4” – 6’7”

Videos



Specification

Model: Cheetah Plus	Motor: 48V 750W Bafang™
Battery Type: Lithium-ion	Motor Peak Output: 1000W
Battery Cell: Samsung	Top Speed: 2-8
Battery Capacity: 48V 17.5Ah	Front Light: Included.
Range: 45 Miles	High/Low Beam Switch: Yes
Charging Time: 4 – 6 Hrs	Pedal Assist: 5-9 levels
Tire: Kenda Tire	Throttle: Yes
Reflect Strip: Yes	Wheel Size: 26” 4.0 Fat Tire
Display: Full Color	Brake: F/R Hydraulic Brake
Display Function:	Brake Brand: Tektro
PAS Level, Current Speed, Max Speed, Odometer, Trip, Daylight and Night Model Selection, Eco, Normal, Power drive model selection	Weight: 70 lbs with battery
Frame Material: 6061 Aluminum Alloy	Shift: 7 Speed SHIMANO™
Saddle: Leather with Mechanical Spring	Crank Wheel: 42T
Chain: KMC™ Anti-Rust	Motor Efficiency: ≥80%
