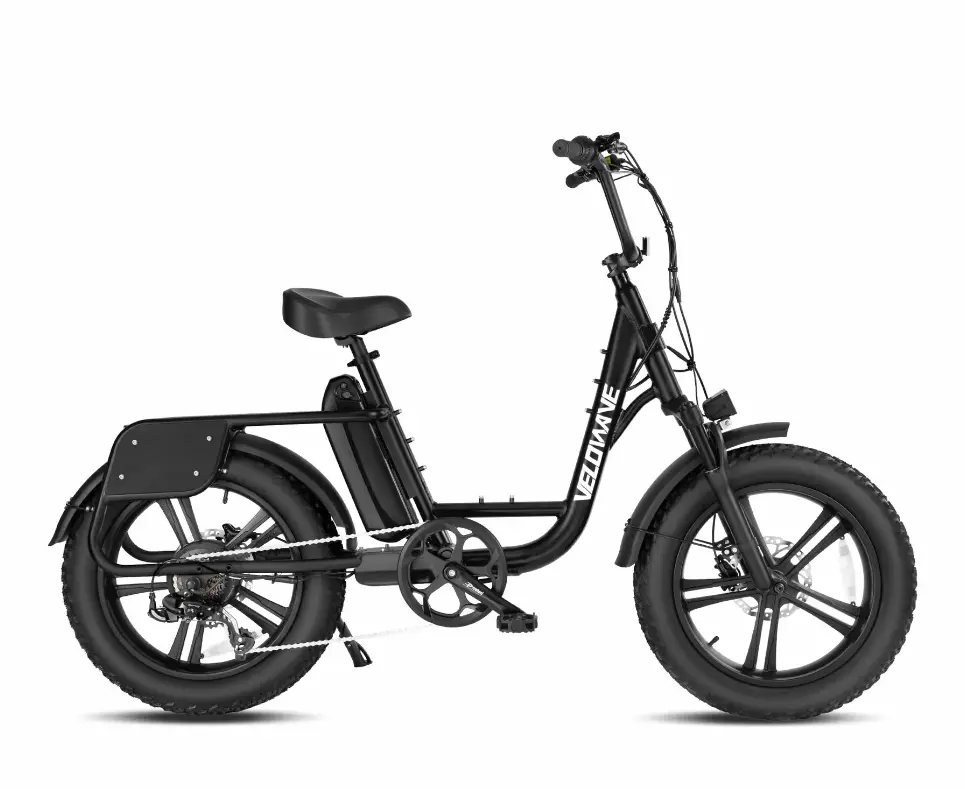

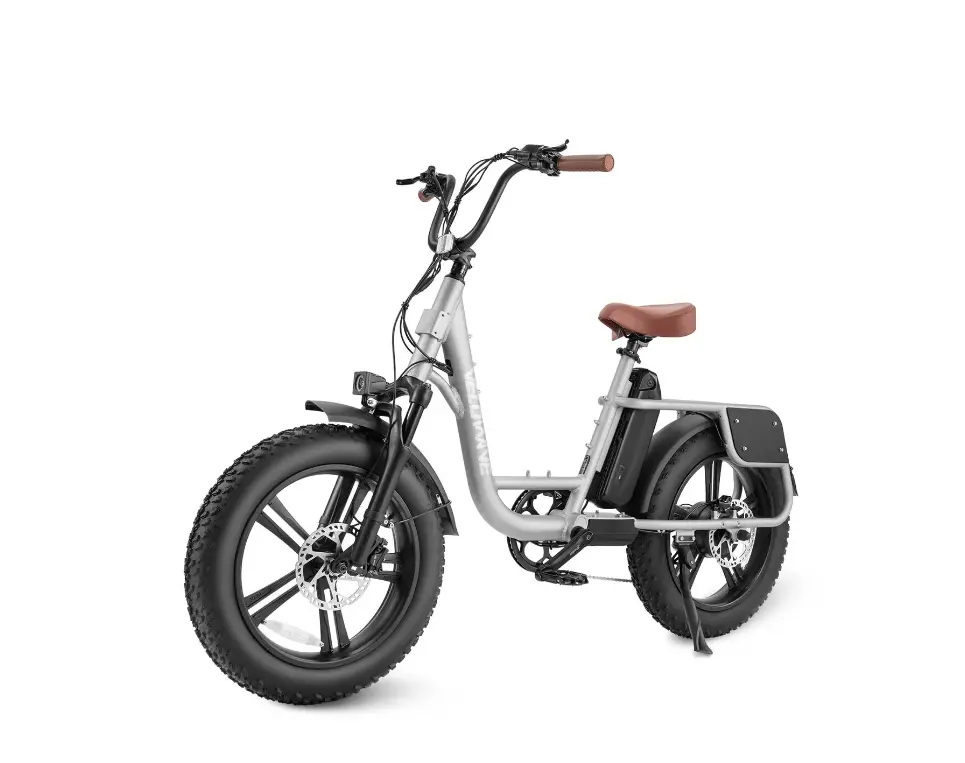

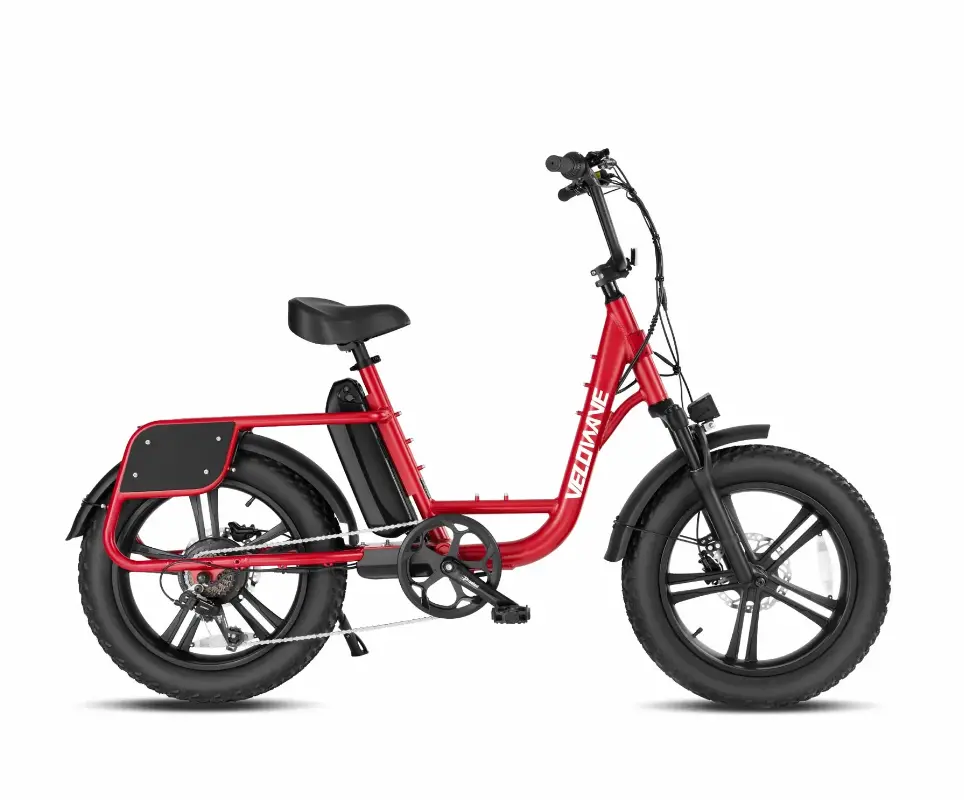

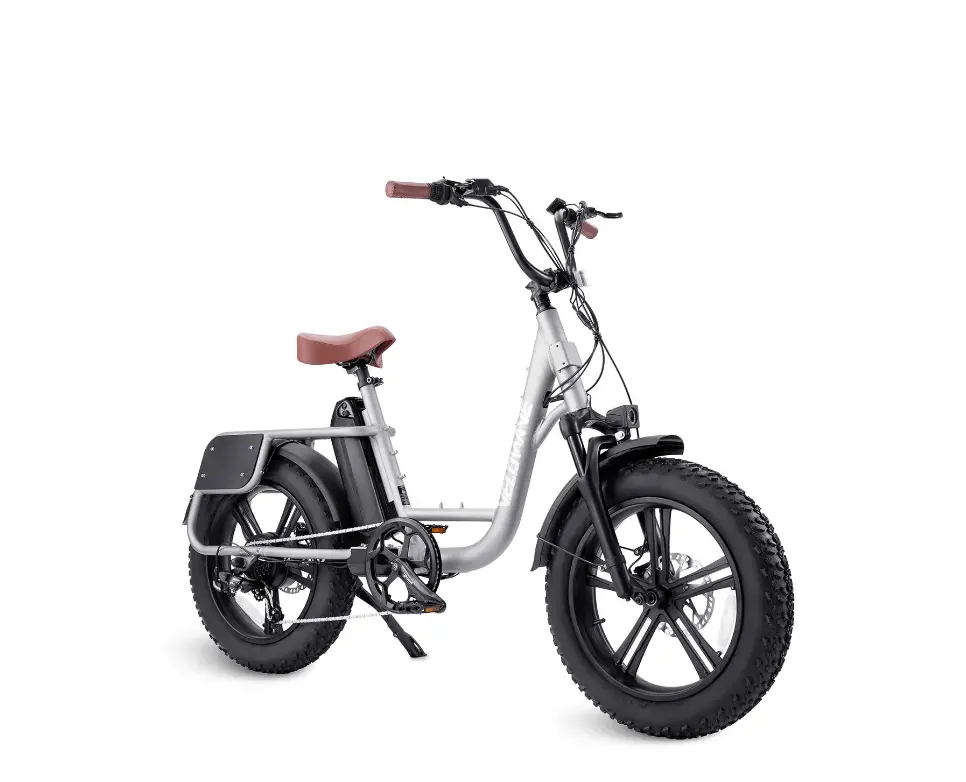

Velowave Prado S Step-Through Commuter Electric Bike

Description

HIGHLIGHTS

• MOTOR: BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 55NM

• BATTERY: 48V 15Ah Lithium-Ion Battery, LG Cells

• DERAILLEUR: Shimano 7-speed

• FRAME MATERIAL: 6061 Aluminum

• FORK: Hydraulic Suspension Fork

• TIRE: 20 x 4 Fat Tires

• BRAKE: Front & Rear Hydraulic Disc Brakes

• Standover Height: 29.72″

• Wheelbase: 46.06″

• Recommended Height: 5’4″ – 6’2″

• Weight: 77.2 lbs w/ battery

• Load Capacity: 330 lbs max

Prado S Step-Through Commuter Electric Bike By VELOWAVE

SPECIFICATIONS

Rear Rack: Integrated with the frame
Frame: 6061 Aluminum
Derailleur: Shimano 7-speed
Brakes: Front & Rear Hydraulic Disc
Display: Multifunctional Color-Screen Display
Fork: Front Hydraulic Suspension Fork
Throttle: Thumb Throttle
Kickstand: Side kickstand
Crank Set: 52T, 160mm Alloy Crank
Tires: 20 x 4 Fat Tires
Riding Mode: Pedal Assist, Cadence Sensor
Battery: 48V 15Ah Lithium-Ion Battery, LG Cells
Charger: 48V 2Amp
Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 55NM
Controller: 48V 25Amp peak
Top Speed: 18 mph

SIZING

Seat Post Length: 18.9”
Bottom Bracket Height: 11.22”
Total Length: 70.47′
Chainstay Length: 20.67′
Head Tube Length: 9.45”
Front-Center: 26.38′
Seat Tube Angle: 110°
Wheelbase: 46.06”
Handlebar Height: 46.85”
Standover Height: 29.72”
Head Tube Angel: 67°
Reach: 14.57”
