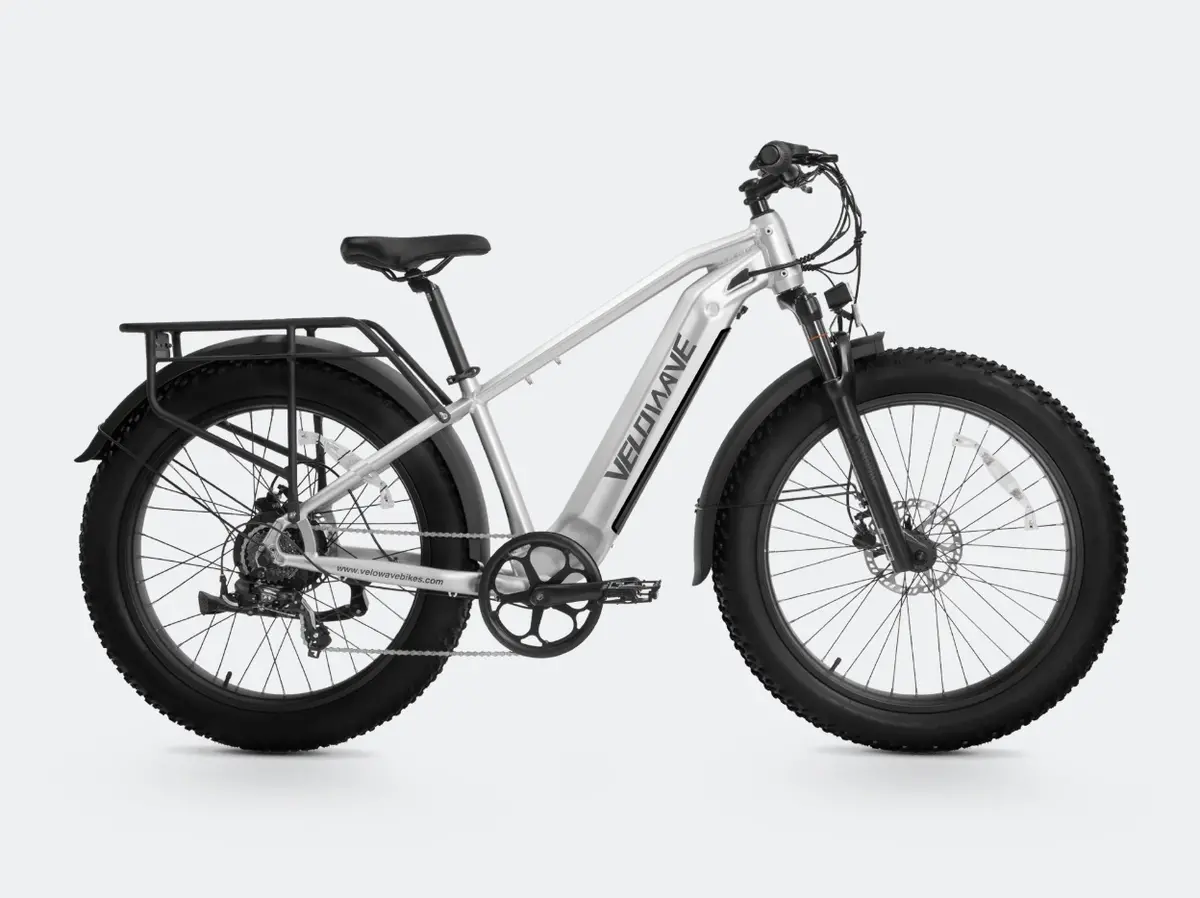

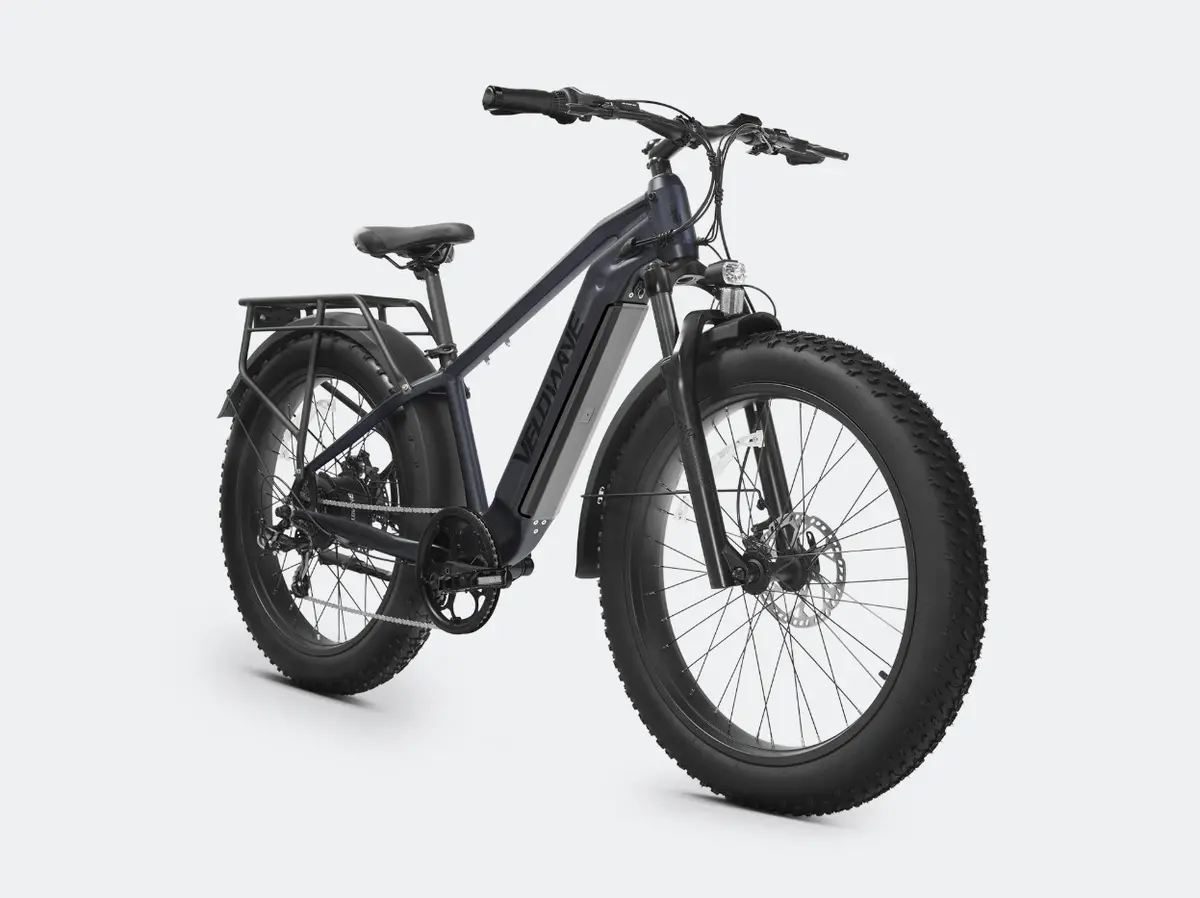

Velowave Ranger 2 Fat Tire Electric Bike – All-Terrain E-Bike

Description

HIGHLIGHTS

• MOTOR: 750W BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM

• BATTERY: 48V 15AH, LG Cells

• DERAILLEUR: Shimano 7-Speed RevoShift

• FRAME MATERIAL: 6061 Aluminium, Removable Battery, Internal Routing

• FORK: Hydraulic Suspension Fork with 60mm travel, with lockout

• TIRE: Kenda 26″ x 4.0″ Fat Tires

• BRAKE: Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function

• Standover Height: 704mm

• Wheelbase: 1170mm

• Recommended Height: 5’4″ – 6’5″

• Weight: 43.8kg (96.56lb)

• Load Capacity: 136 kg (300 lb) Payload Capacity

Ranger 2.0 Fat Tire All-Terrain Electric Bike by VELOWAVE

This ranger 2.0 boasts a powerful motor propelling you up to 28 MPH and a lockable, removable battery for hassle-free charging at home or the office, it covers up to 90 Miles by Pedal; 30+ Miles by Throttle on a single charge, free from range worries. The 4-inch fat tires conquer anything from snow and sand to rough city streets, 6061 aluminum frame supports up to 350 lbs, ensuring a reliable and sturdy ride.

KEY FEATURES

• Stable Riding: Experience stability with out 750W Geared Hub Motor. Conquer hills effortlessly and cruise at peak speeds.

• Sturdy Build: Crafted with a reliable 6061 aluminum frame, easy access for all riders. Supports up to 350 lbs with a reinforced rear triangle.

• Responsive Braking: Seamless control with multiple riding modes. Hydraulic disc brake ensures reliable, sensitive braking.

• Long-lasting Battery: Powered by a premium 48V 15AH LG Battery, covers 30-40 miles on a single charge. Easily lockable and removable.

• Shimano Derailleur: Unparalleled riding with the Shimano 7-Speed Derailleur. Conquer hills and cruise effortlessly.

• Upgraded Design: Enhance your ride with a rear rack and upgraded fender package. Carry cargo effortlessly and stay stylishly clean.

• Smart Display: Enjoy instant power with the thumb throttle. Switch between pedal and throttle modes for accelerated rides. Advanced display offers real-time metrics.

• Fat Tire Design: Conquer any landscape with our 26″ x 4.0″ Fat Tire e-bike. Enjoy smooth rides with anti-skidding, wear-resistant performance.

SPECIFICATIONS

Classes: Class 3(Ebikes can go up to 28mph with pedal assistance)
Max Speed: 28MPH by pedal, 20MPH by throttle
Range: up to 90 Miles by Pedal; 30+ Miles by Throttle(Calculation based on rider’s weight of 75kg. Range varies according to road condition, weather, rider’s weight etc.)
Pedal Assist: 5 Levels

FRAMESET

Frame: 6061 Aluminium, Removable Battery, Internal Routing
Fork: Hydraulic Suspension Fork with 60mm travel, with lockout

WHEELS

Rim Material: Aluminum
Rim Size: 26″ 36H Front & Rear
Front Wheel Spokes: 13G x 244/246mm, Black Stainless
Rear Wheel Spokes: 12G x 217/219mm, Black Stainless
Tubes: Butyl Rubber, Schrader Valve
Hubs: Disc Nutted Front /Rear Axles
Tire: Kenda Fat Tires
Tire Size: 26″ x 4.0″

E-SYSTEM

Battery: Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells
Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
Motor: Geared Hub Motor, Rated 750W, Peak 1200W, Max Torque 80NM
Controller: 48V 25A Peak
Display: Multifunctional Color-Screen Display
Pedal Assist: Cadence Sensor
Throttle: Thumb Throttle
Front Light: 48V 10W LED Light, 30 LUX

DRIVETRAIN

Shifter: Shimano 7-Speed RevoShift
Rear Derailleur: Shimano ARDTY500D 7-Speed, Long Cage
Crank & Chainring: 52T, 170mm Alloy Crank
Freewheel: Shimano 14-28T, 7-Speed freewheel
Pedal: Alloy Platform Pedals
Chain: KMC 124 Link, 7-Speed

COMPONENTS

Saddle: Comfortable Wide Saddle
Seatpost: Forged Alloy, Ø30.4*350mm
Seat Clamp: Ø35mm Quick Release
Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
Handlebar: Aluminum Ø31.8mm, Width 740mm
Headset: Sealed Bearing Headset
Grips: Nylon Lock-on, Ergonomic Comfort
Brake: Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function
Brake rotor: 180mm, 1.9mm thick
Kickstand: Side Kickstand, Alloy, Rear Mount
Fenders: Plastic 26″x110mm
Rear Rack: Aluminum Alloy Rear Rack

WEIGHT

Net Weight: 33.1kg (72.97lb (including battery)
Gross Weight: 43.8kg (96.56lb)
Battery Weight: 4kg (8.82lb)
Weight limit: 136 kg (300 lb) Payload Capacity

SIZE

Product Size: 1930x755x1110mm
Packing Size: 1570x330x900mm

SIZING
