Velowave Ranger Electric Fat Bike

Description

HIGHLIGHTS

• MOTOR: 750W BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM

• BATTERY: 48V 15AH, LG Cells

• DERAILLEUR: Shimano 7-Speed Rear

• FRAME MATERIAL: 6061 Aluminum

• FORK: Front Hydraulic Suspension Fork, Travel: 75mm

• TIRE: Kenda 26″*4.0″ Fat Tires

• BRAKE: Front & Rear Hydraulic Disc Brakes

• Standover Height: 30.2″

• Wheelbase: 46.8″

• Recommended Height: 5’6″ – 6’2″

• Weight: 74 lbs w/ battery

• Load Capacity: 330 lbs max

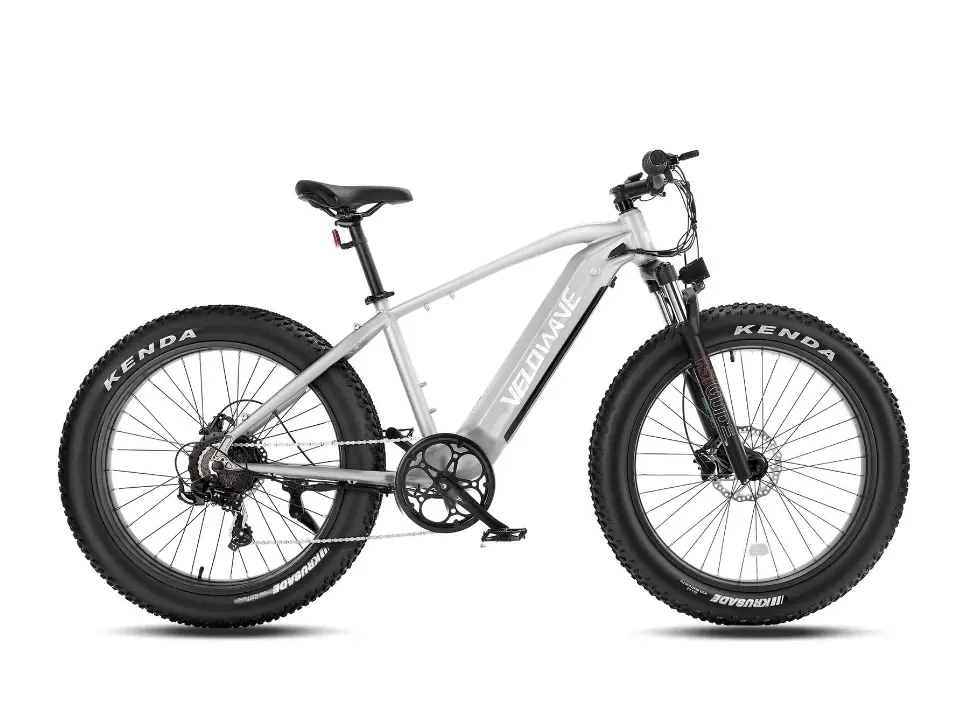

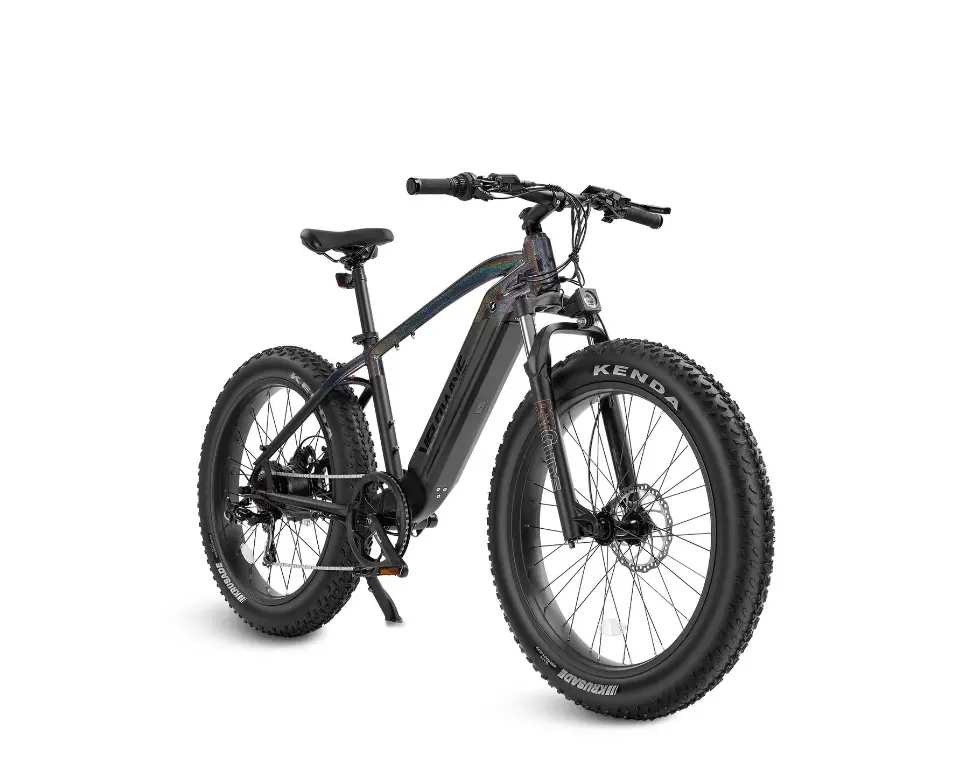

Ranger 750W Rear Hub Fat Tire Electric Bike By VELOWAVE

SPECIFICATIONS

MOTOR: 750W BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM
BATTERY: 48V 15AH, LG Cells
CHARGER: 48V 2Amp
RIDING MODE: Cadence Sensor
DISPLAY: Multifunctional Color-Screen Display
DERAILLEUR: Shimano 7-Speed Rear Drivetrain: ARDTY200GSLD
CRANKSET: 52T, 170mm Alloy Crank
QUICK RELEASE: Front Tire
FRAME MATERIAL: 6061 Aluminum
FORK: Front Hydraulic Suspension Fork, Travel: 75mm
TIRE: Kenda 26″*4.0″ Fat Tires
BRAKE: Front & Rear Hydraulic Disc Brakes
THROTTLE: Thumb Throttle
Thumb Throttle: 48V 10W LED Light
SADDLE: Comfortable Wide Saddle
PEDALS: Platform Pedals
KICKSTAND: Side kickstand
TOP SPEED: 20 mph

SIZING

Seat Post Length: 18.0”
Total Length: 76.3”
Seat Tube Angle: 70°
Head Tube Length: 4.9”
Handlebar Height: 42.5′
Head Tube Angel: 71°
Bottom Bracket Height: 14.7”
Chainstay Length: 20.1”
Front-Center: 26.8”
Wheelbase: 46.8”
Standover Height: 30.2”
Reach: 18.1”
