Description

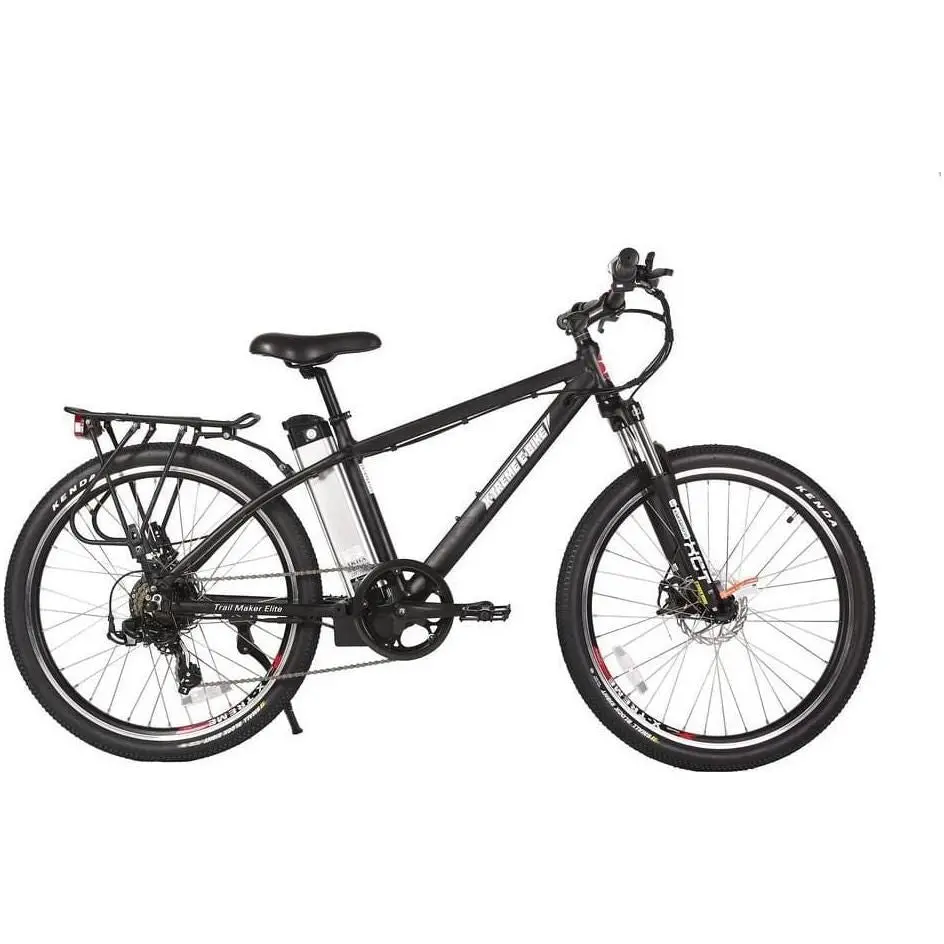

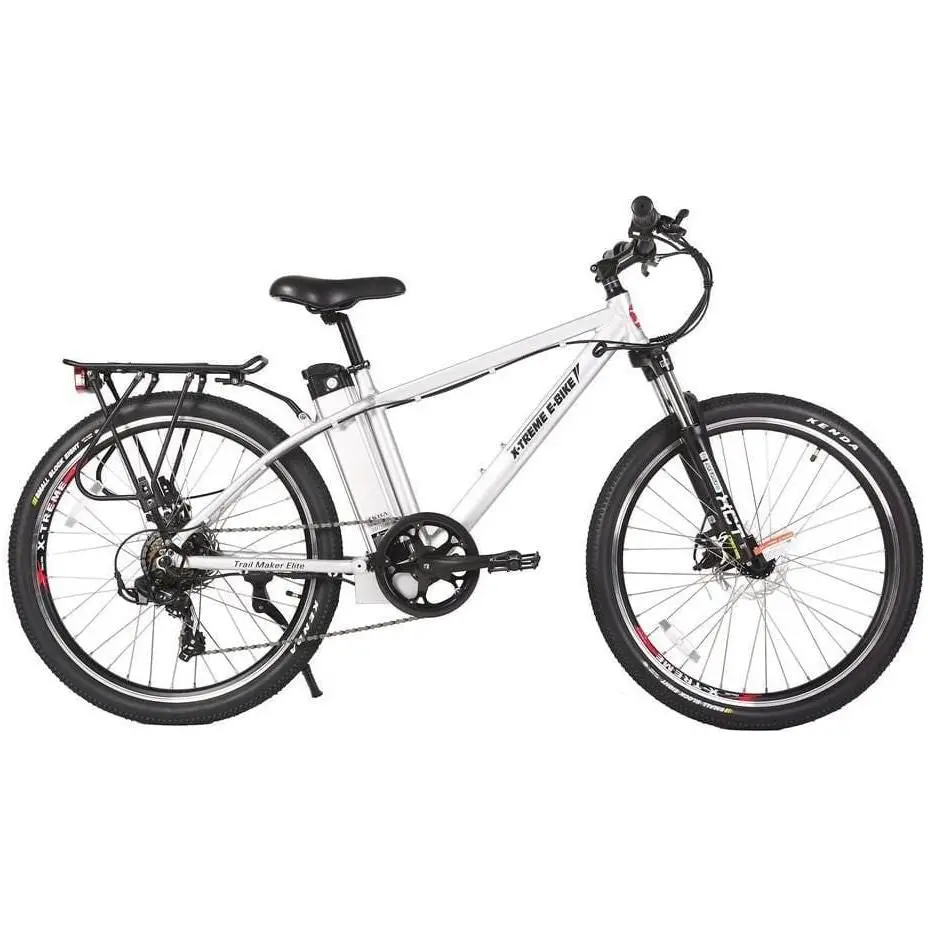

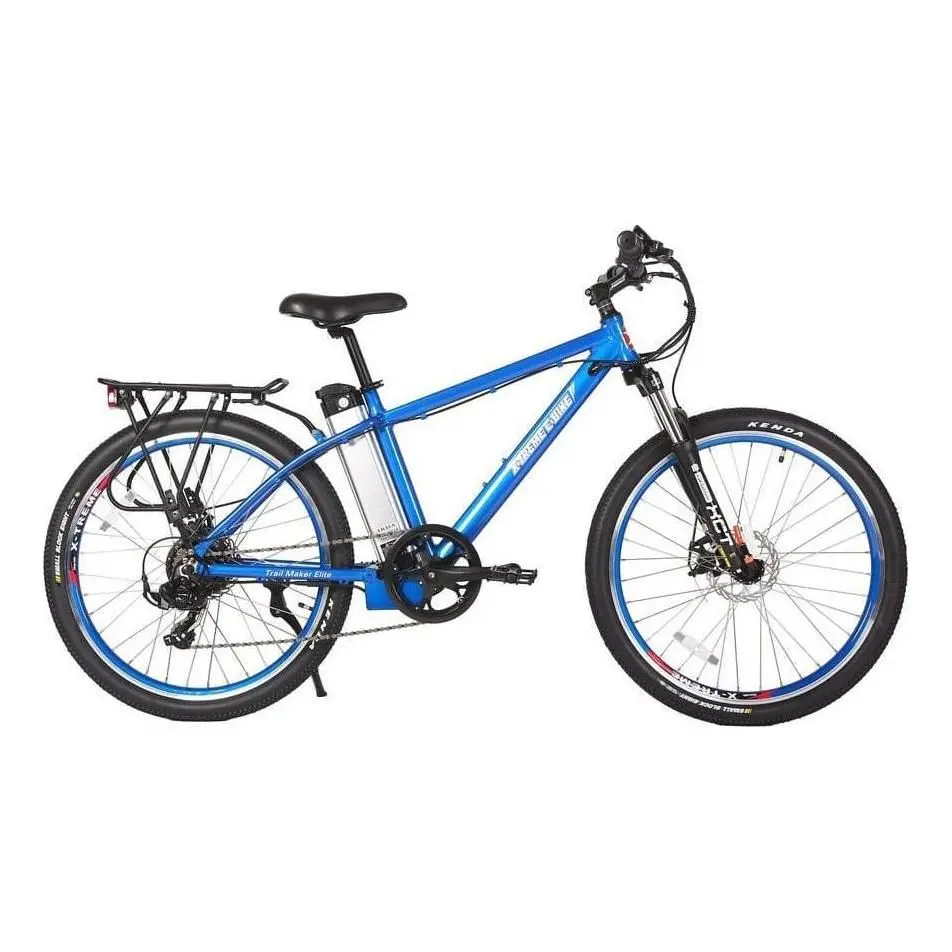

Trail Maker Elite Electric Mountain Bicycle
The Trail Maker Elite is a Lithium Battery powered Electric Bicycle, running on a 300 Watt Zero Resistance rear hub motor. Made with all top of the line components this model includes a 7 Speed Shimano Tourney® Gears & Shifter System, 7 Lightweight Lithium LiPo4 Batteries, a 100% Aluminum Alloy Frame, fully Adjustable Seat and MOZO Brand Hydraulic Forks.
This electric bicycle will travel up to 20 miles on a single charge and it only takes about 4 hours to recharge the battery. The LiPo4 lithium battery pack is lightweight, compact and mounts to the frame under the seat and is hardly noticeable.
Specifications
| Power | Electric |
| Watts | 300 Watts |
| Amps | 9.6 Amp Circuit (7 Battery Cells at 9.6 Amps Each) |
| Volts | 24 Volts (Each Battery Cell is 3.6 Volts) |
| Batteries | 7 Lightweight Lithium LiPo4 Battery Cells in a Sealed Removable Pack |
| Distance | Up to 15 to 20 miles per charge* – can still pedal if charge is lost |
| Tire Size | 26 x 1.95 Inch on Aluminum Wheels |
| Charger | 24V Smart Charger Included |
| Motor | Zero Resistance Hub Motor – Motor is in centere of rear wheel |
| Gears & Speeds | 7 Speed Shimano Tourney® Gears & Shifter |
| Tool Kit | Included |
| Throttle Type | Variable Speed Control (Twist Throttle) or Pedal & Power Assisted |
| Key Start | Yes |
| Frame Type/Size | 100% Aluminum – Very Light Weight – 18 Inches |
| Forks | MOZO Brand Hydraulic Forks |
| Braking System | Front & Rear JAK Disk Brakes |
| Drive System | Zero Resistance Rear Hub Motor (Motor is in rear rim) + Pedal Power |
| Headlight | Yes |

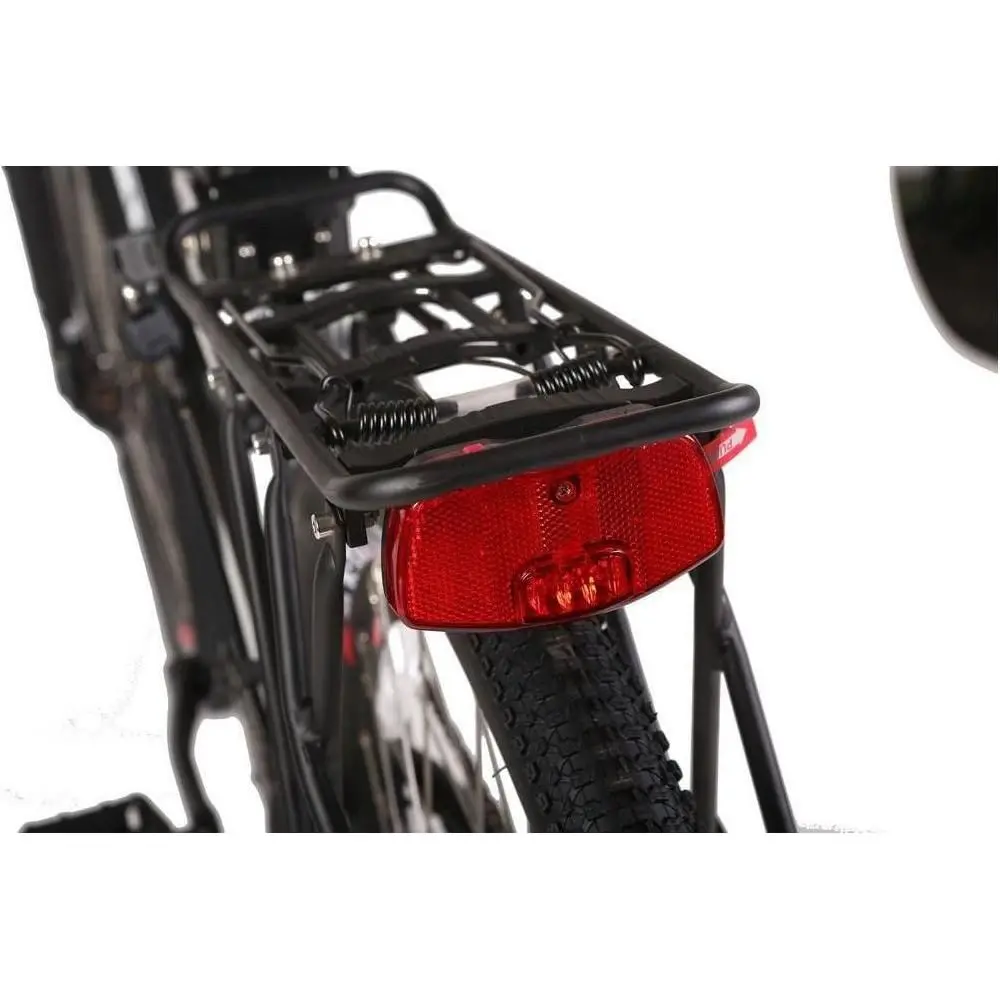

| Cargo Rack | Included |
| Measurements | 72 Inches Wheel to Wheel – 25 Inches Width – 37 Inches to Handlebars – 34 3/4″ to 39 Inches Seat Height |
| Carton Size (L x W x H) | 54 x 9 x 28 |
| Bicycle In Box Weight | 63 lbs. |
| Bicycle Weight | 52 lbs. |
| Suggested Max Weight | 350 lbs. |
| Warranty | 1 Year X-Treme Warranty & 1 Year Battery Warranty |
| Notes | *depends on rider weight & terrain |
